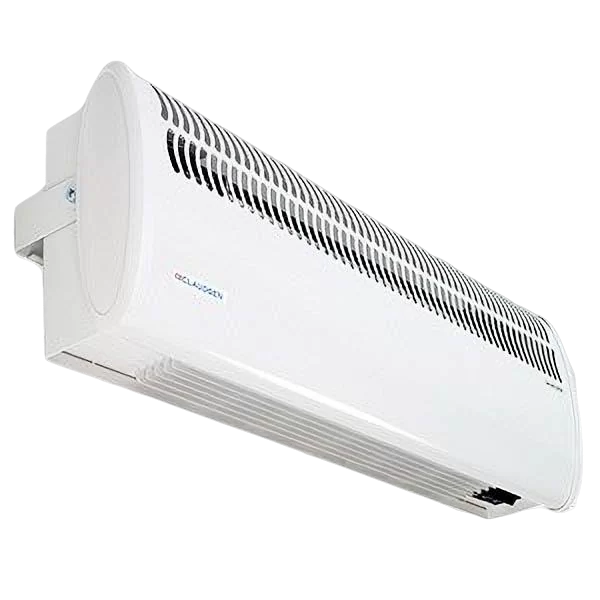

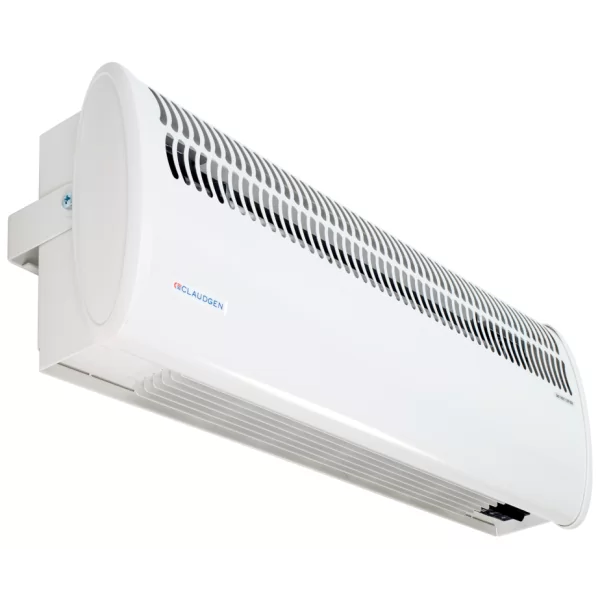

Consort HE7420 Screenzone White Air Curtain With Integral Controls, Adjustable Air Flow Direction & Bracket For Single Doorways 4.5kW H:211mm x W:634mm x D:121mm
HE7420
Consort Screenzone Single Door Air Curtains 3kW & 4.5kW
The Consort Screenzone Single Door Air Curtains provide a welcoming curtain of warmth, perfect for doorways in commercial settings such as shops, hotels, and offices. These air curtains not only enhance comfort but also improve energy efficiency by preventing heat loss through frequently opened external doors.
- Versatile Heating Options: Available in 3kW or 4.5kW ratings for different heating requirements.
- Flexible Installation: Can be wall-mounted, suspended, or trunking mounted with supplied brackets for angular adjustment.
- User-Friendly Features: Integral switches for easy operation, with an optional remote switch (HE8407) for added convenience.
- Energy Efficient Design: Features fan-only setting for air circulation and three heat settings to optimise energy use.
- Safety Assured: Includes automatic safety cut-out for thermal overload protection.
- Durable Finish: Finished in white for a clean, professional appearance.
Technical Specifications
| Rating (kW) | Maximum Mounting Height (m) | Weight (kg) | dBA | Model No. |
|---|---|---|---|---|
| 3 | 2.3 | 5.1 | 46 | HE7402 |
| 4.5 | 2.3 | 5.1 | 46 | HE7420 |
✅ Enhance energy efficiency and comfort in commercial spaces with the Consort Screenzone Single Door Air Curtains—reliable, versatile, and easy to install.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Power Source | Electric |
| Orientation | Horizontal |
| Supply - Number Of Phases | 1 |
| C/w Remote | N |
| C/w Brackets | Y |
| Maximum Noise Output | 46 Db |
| Heat Output | 3 Kw |
| Mounting Height | 2.3 Metres |
| C/w Humidistat | N |
| C/w Filters | N |
| C/w Pullcord | N |
| Ean Code | 5017319541457 |
| Range | Consort Screenzone |
| Product | Air Curtain |
| Type | Double Doorway |
| Wattage | 3.0 kW |
| Colour | White |
| Voltage | 230/240 V |
| Unit Weight | 5.1 kg |
| Mounting | Surface |
| Use | Domestic & Commercial |
| Material | Metal |
| Overall Length | 210 mm |
| Qualifier | with fan only setting 3 heat settings |
| Nominal Power Output | 3.0 kW |
| Overall Depth | 115 mm |
| Overall Width | 634 mm |
| Supply Voltage | 230 V |
