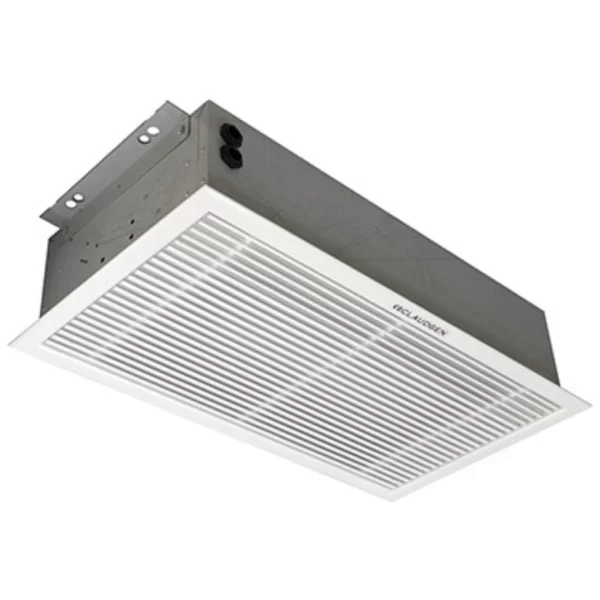

Consort RAC1306RX Screenzone White 1Ph Wireless Controlled Recessed Commercial Air Curtain With White Grille - Requires CRXSL/HRXSL Controller, 6.0kW 240V L:339mm x W:1350mm x D:155mm
RAC1306RX
Consort RX Recessed Air Curtains – Screenzone 3kW, 4.5kW & 6kW
The RX Recessed Air Curtains are designed for discreet installation above doorways in suspended ceilings, offering a welcoming curtain of warmth for shops, hotels, offices, and other commercial premises. With sleek integration and wireless control options, they provide a seamless and efficient heating solution.
- Versatile Power Options: Available in 3kW, 4.5kW, and 6kW ratings to suit various applications.
- Compact Design: Fits a recess as shallow as 210mm (155mm unit depth plus 55mm free air).
- Wireless Control Capability: Compatible with advanced single-zone controllers such as CRXSL, HRXSL, and LC (sold separately).
- Enhanced Functionality: Fan-only setting for air circulation and automatic safety cut-out for thermal overload protection.
- Sleek Appearance: Supplied with a white grille for an unobtrusive finish.
Technical Specifications
| Model No. | Rating (kW) | Max. Mounting Height (m) | Weight (kg) | dBA | Depth (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|
| RAC0603RX | 3 | 2.8 | 9.5 | 55 | 155 | 339 | 634 |
| RAC0604RX | 4.5 | 2.8 | 9.5 | 55 | 155 | 339 | 634 |
| RAC1006RX | 6 | 2.8 | 13.5 | 57 | 155 | 339 | 985 |
| RAC1306RX | 6 | 2.8 | 20 | 60 | 175 | 339 | 1350 |
✅ Enhance your commercial space with RX Recessed Air Curtains—offering discreet, efficient heating and modern control options.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Consort Screenzone |
| Product | Air Curtain |
| Type | Double Doorway |
| Wattage | 6.0 kW |
| Colour | White |
| Width | 1350 mm |
| Nominal Power Output | 6.0 kW |
| Output | 6 kW |
