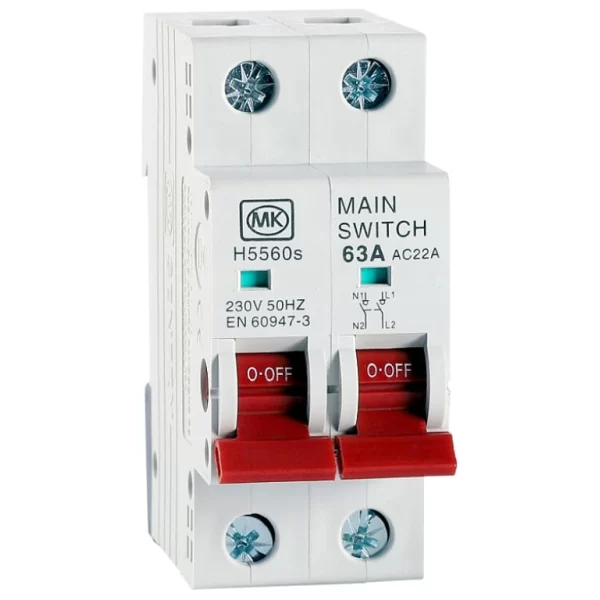

MK Sentry H5560S 2 Module Switch Disconnector 63A

MK Sentry H5560S 2 Module Switch Disconnector – 63A, AC22A Rated, for Resistive & Inductive Loads

The MK Sentry H5560S is a 63A 2 Module Switch Disconnector designed for dependable circuit isolation in Sentry Consumer Units and modular enclosures. Rated AC22A, it handles both resistive and inductive loads and supports flexible installation with direct-to-busbar or cable-in/cable-out configurations. Its positive contact indication ensures compliance with 17th Edition IEE Wiring Regulations.

• AC22A Duty Rated: Suitable for the safe switching of resistive and inductive loads in a variety of installations.
• Flexible Installation: Compatible with direct-to-busbar or cable-in/cable-out connections for maximum versatility.
• Positive Contact Indication: Compliant with IEE Wiring Regulations (537.2.2.2 and 537.3.2.2) for safe, visible disconnection status.
• Compact & Modular: Fits within Sentry Consumer Units and 2- or 4-module enclosures without compromising space.
• High Cable Capacity: Accommodates conductors up to 50mm² for high-load applications.

Technical Specification

• Rated Current: 63A
• Modules: 2
• Duty Category: AC22A
• Cable Capacity: Up to 50mm²
• Compliance: BS EN 60947-3: 1999
• Dimensions: 81 x 36 x 76mm

✅ Choose the MK Sentry H5560S for safe, regulation-compliant disconnection and reliable load switching in your modular installations!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
