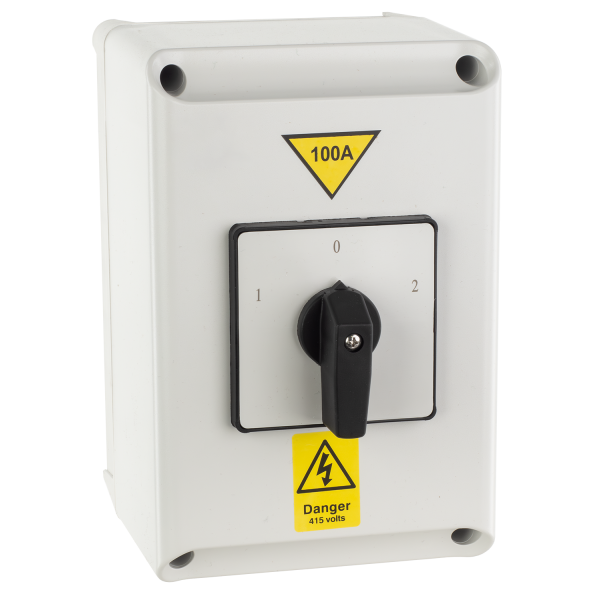

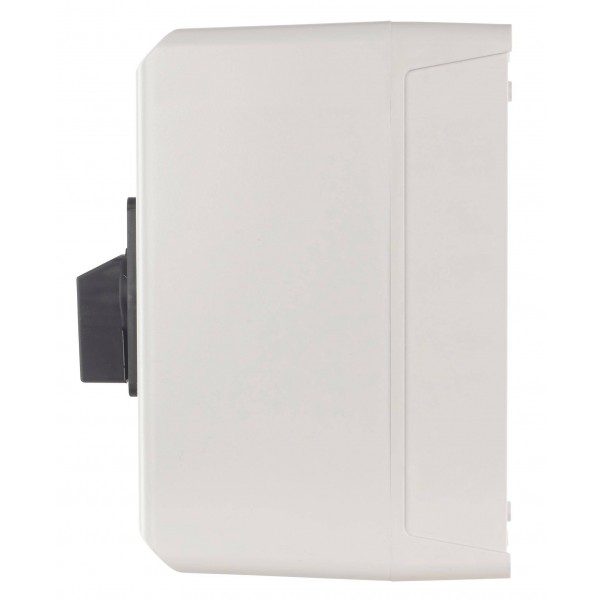

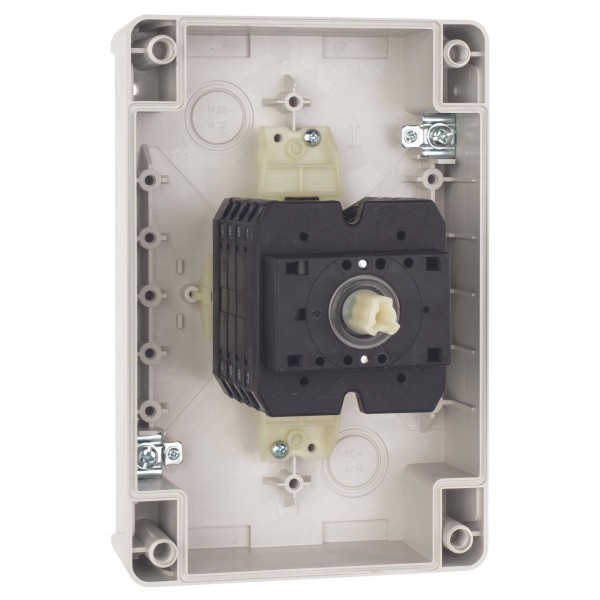

Lewden CS/100/4P Insulated Changeover Switch 4P 100A IP65

100A 4 Pole Insulated Changeover Switch – IP65 for Reliable Power Switching

This 100A four-pole insulated changeover switch provides a secure and efficient solution for switching between power sources. Housed in an IP65-rated plastic enclosure, it offers protection against dust and water, making it ideal for both indoor and outdoor installations.

• Centre OFF Position: Allows safe disconnection of circuits when switching between power sources.
• IP65 Rated Enclosure: Provides excellent protection against dust and water ingress for reliable operation in harsh environments.
• 4 Pole Design: Ensures full isolation of three-phase power plus neutral.
• Top & Bottom Knockouts: Allows flexible cable entry for easy installation.
• 35mm² Maximum Cable Capacity: Supports a range of conductor sizes for secure connections.
• Compact & Durable Design: Built for long-lasting performance in commercial and industrial settings.

Technical Specification

• Type: 4 Pole Insulated Changeover Switch
• Current Rating: 100A
• Poles: 4 (Three-Phase + Neutral)
• Enclosure Rating: IP65
• Enclosure Material: Plastic
• Centre OFF Position: Yes
• Maximum Cable Capacity: 35mm²
• Knockouts: Top & Bottom
• Dimensions (H x W x D): 240 x 160 x 196mm

✅ Ensure safe and efficient power switching with this high-quality 100A insulated changeover switch!
