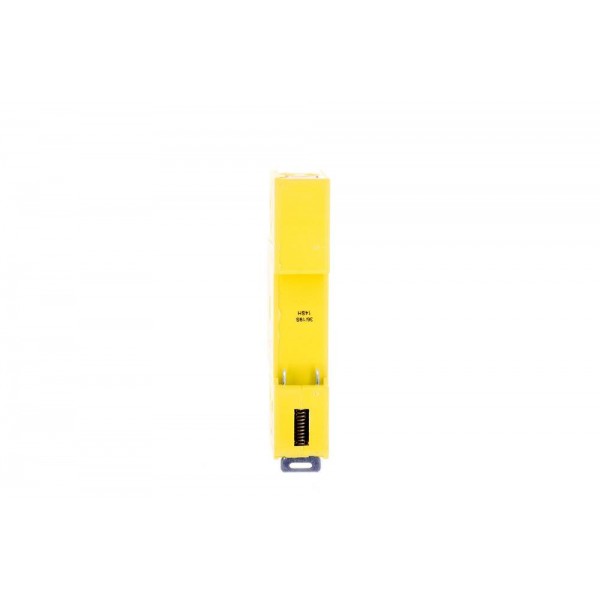

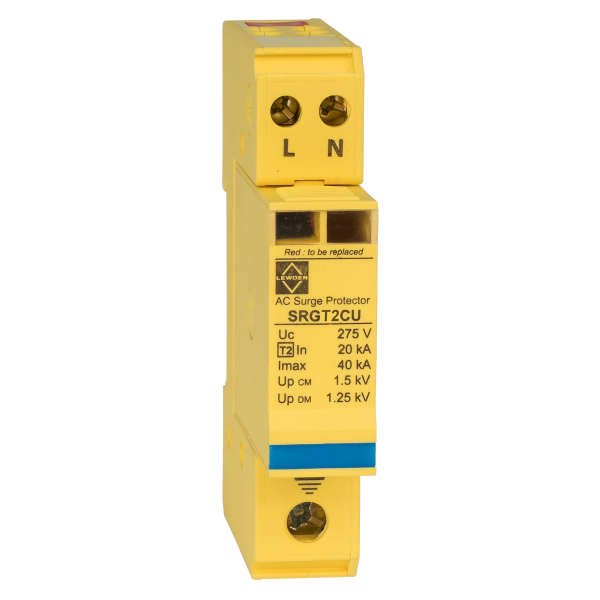

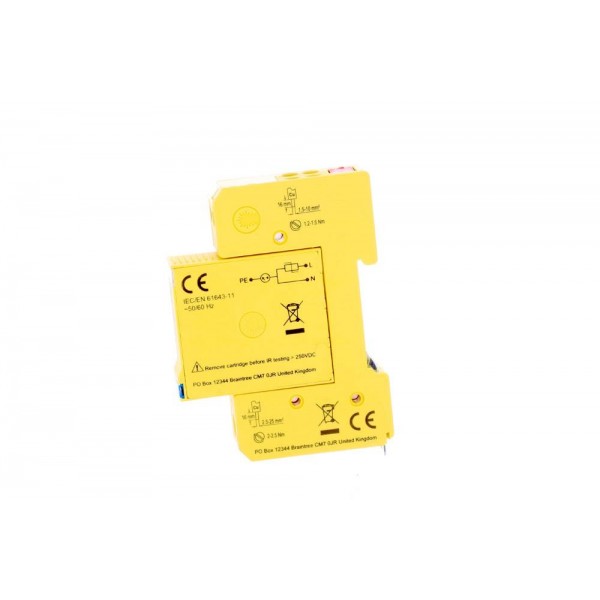

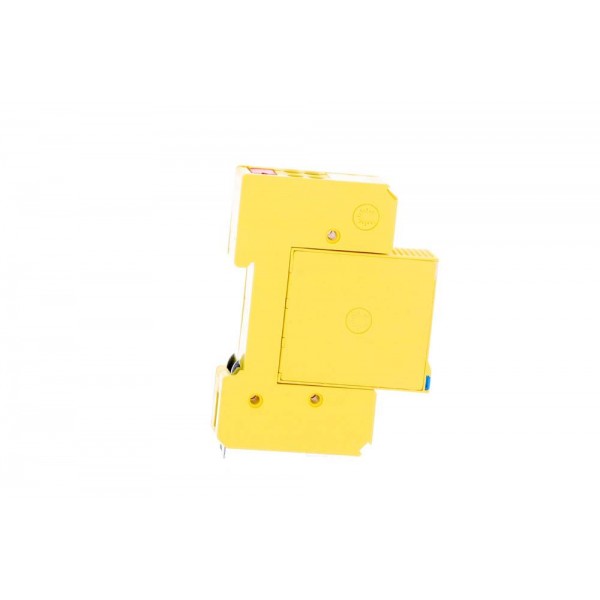

Lewden SRGT2CU 1 Module Single Phase Type 2 TT/TN-S Surge Protection Device
SRGT2CU
SRGT2CU - Type 2 Single Phase Surge Arrester. Ideal for domestic consumer unit applications.
The Lewden range of circuit protection devices are designed and tested for use with Lewden branded distribution boards. SRGT2CU is a single phase surge arrester suitable for use in TN-C-S (PME) / TN-S / TT network systems. It is designed for universal application, for the protection of electrical appliances against impulse surge effects when connected to LV supply systems.
Technical Info:
Test class according to EN61643-1: Type
Earthing system: TN / TT
Nominal Voltage (Un): 230-240V ac
Max continuous operating voltage (Uc): 275V ac
Nominal discharge current (In) (8/20µS): 20kA (L/N, L/PE) 40kA (N/PE)
Temporary overvoltage (TOV): 335V/5S 1200V+Uo/ 0.2S
Response time: <20nS
Admissible short circuit current (Isccr): 10000A
Maximum backup fuse rating: 125A gL/gG
Min-Max conductor size: 1.5-10mm² (L/N) 2.5-25mm² (PE)
Cable connecting length (maximum): 500mm total or less
Terminal tightening torque: 1.2-1.5Nm L/N 2.0-2.5Nm PE
Mounting: 35mm din rail
Operating temperature range: -40 ÌŠC to +85 ÌŠC
Ingress protection rating: IP20
Dimensions:
W: 18 x H: 90 x D: 67 mm
Ean Code | 5026992040201 |
Alarm Output | N |
Status Indicator | Y |
Plug-in Module | Y |
Surge Protector Type | Type 2 |
Maximum Cable Size | 25 mm2 |
Nominal Voltage | 230-240 V |
Nominal Discharge Current | 20 kA |
Maximum Discharge Current | 40 kA |
Supply Frequency | 50-60 Hz |
Minimum Cable Size | 1.5 mm2 |
Product | Surge Protection Device |
Type | Type 2 |
Ingress Protection | IP20 |
Colour | Yellow |
Unit Weight | 0.12 kg |
Pole Configuration | Single Pole (1P) |
Material | Plastic |
Width | 18 mm |
Depth | 67 mm |
Standards | IEC/EN 61643-11 |
Ce Approved | Y |
Number Of Poles | Single Pole (1P) |
Mounting Type | DIN Rail |
Height | 90 mm |
Number Of Modules | 1 |
Voltage Type | AC |
Minimum Operating Temperature | -40 Degrees C |
Maximum Operating Temperature | 85 Degrees C |
