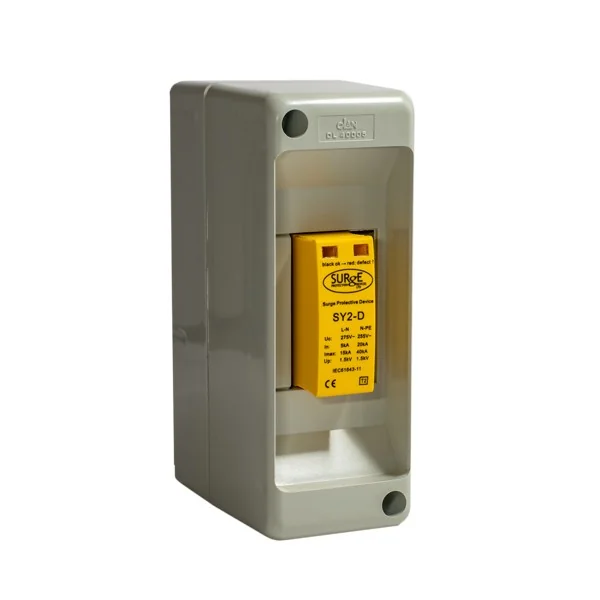

Surge Protection SY2-D/ENC Type 2+3 Single Module 2 Pole with Replaceable Modules and Window Indication Complete in a 2 Module Box

Type 2+3 Single-Phase 2-Pole Surge Protector – Compact Module with Indication in 2-Module Enclosure

This compact Type 2+3 surge protection device is designed for domestic single-phase installations, offering essential overvoltage protection in a convenient two-module enclosure. With visual status indication, replaceable modules, and no earth leakage, it integrates seamlessly before or after RCDs or RCBOs.

• Domestic-Ready SPD: Ideal for residential consumer units, fully compliant with BS EN 61643-11, BS EN 62305, and BS 7671 standards.
• Earth Leakage Free: Can be safely installed before or after RCDs, RCBOs, or other protective devices—maximising flexibility.
• Visual Monitoring: Built-in window indication allows for quick and easy status checks at a glance.
• Easy Installation: DIN rail mountable and wired in parallel with a recommended 32A MCB; includes replaceable modules for straightforward servicing.
• Compact & Versatile: Housed in a 2-module box and compatible with all installation types—TN-S, TNC-S, PME, and TT.

Technical Specification

• Surge Protection Type: Type 2+3 Combined
• System Type: Single Phase, 2-Pole
• Mounting: DIN Rail, Parallel Connection
• Earthing Requirement: 6mm² Earth Conductor Minimum
• Compliance: BS EN 61643-11, BS EN 62305, BS 7671

✅ Protect domestic installations with this compact, compliant, and easy-to-install Type 2+3 SPD—ready to slot straight into your board.
