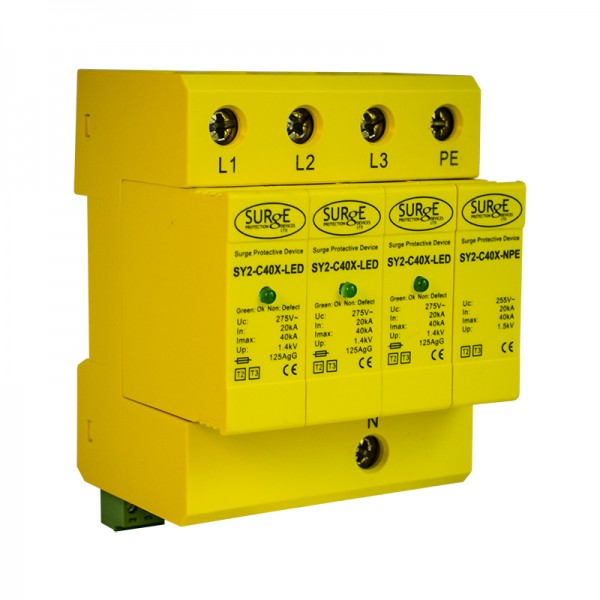

Surge Protection SY2-C40XLED Type 2+3, 3 Phase Surge Protector with LED Indication

Type 2+3 3-Phase Surge Protector – LED Status Indication & DIN Rail Mount for Sensitive Equipment Protection

This Type 2+3 surge protection device offers reliable protection for 3-phase systems, defending sensitive electronic equipment from transient overvoltages. With built-in LED status indication, remote signalling options, and a modular, service-friendly design, it’s ideal for use in industrial and commercial environments.

• Certified Type 2 Protection: Fully compliant with BS EN 61643-11, BS EN 62305, and BS 7671, suitable for TT, TNC-S, and TN-S system types.
• LED Status Monitoring: Integrated LED indicators provide clear visual feedback on surge protection status for quick diagnostics.
• Remote Signalling Capable: Equipped with remote changeover contacts for connection to BMS, alarms, buzzers, or indicator lights.
• Pluggable, Maintenance-Friendly Design: DIN rail mounted with easy-to-replace modules to reduce system downtime during servicing.
• Flexible Installation: Parallel connection with no current limitation; recommended backup fuse or MCB rating of 16–32A.

Technical Specification

• Surge Protection Type: Type 2+3 Combined
• System Type: 3-Phase (TT, TNC-S, TN-S)
• Indication: LED Visual Status
• Mounting: DIN Rail, Parallel Connection
• Compliance: BS EN 61643-11, BS EN 62305, BS 7671

✅ Protect your 3-phase installations with this high-performance SPD—ideal for dependable surge defence and real-time system monitoring.
