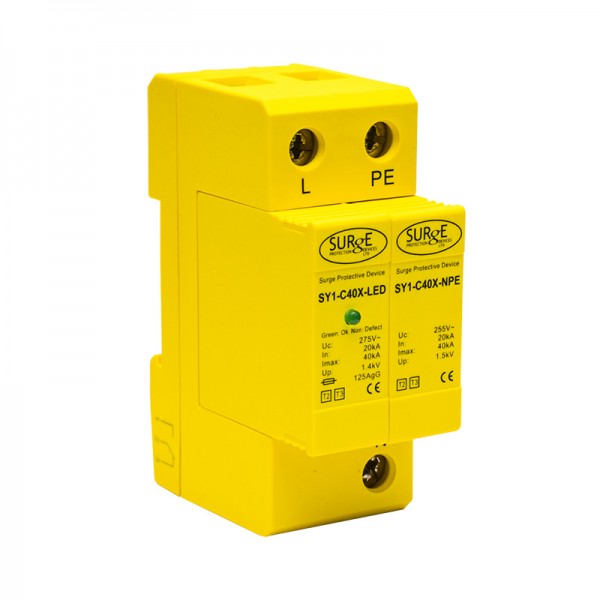

Surge Protection SY1-C40XLED Type 2+3 Single Phase Surge Protector with LED Indication

Type 2+3 Single-Phase Surge Protector – LED Indication & DIN Rail Mount for Sensitive Equipment Protection

This Type 2+3 surge protection device is built to safeguard single-phase systems from damaging transient overvoltages. With LED status indication, remote monitoring capability, and a compact, serviceable design, it’s ideal for domestic and light commercial installations where protecting sensitive electronics is critical.

• Reliable Type 2 Protection: Fully compliant with BS EN 61643-11, BS EN 62305, and BS 7671, suitable for TT, TNC-S, and TN-S system configurations.
• LED Visual Indication: Provides clear status visibility for instant fault recognition and maintenance support.
• Remote Monitoring Ready: Includes remote changeover contacts for integration with BMS, buzzers, or visual/audible indicators.
• Service-Friendly Design: DIN rail mountable with pluggable replacement modules for fast and easy maintenance.
• Flexible & Unrestricted Installation: Connects in parallel with no current limitation; compatible with backup fuse or MCB ratings of 16–32A.

Technical Specification

• Surge Protection Type: Type 2+3 Combined
• System Type: Single Phase (TT, TNC-S, TN-S)
• Indication: LED Visual Status
• Mounting: DIN Rail, Parallel Connection
• Compliance: BS EN 61643-11, BS EN 62305, BS 7671

✅ Protect your single-phase electrical systems with this compact, compliant, and visually monitored surge protection device.
