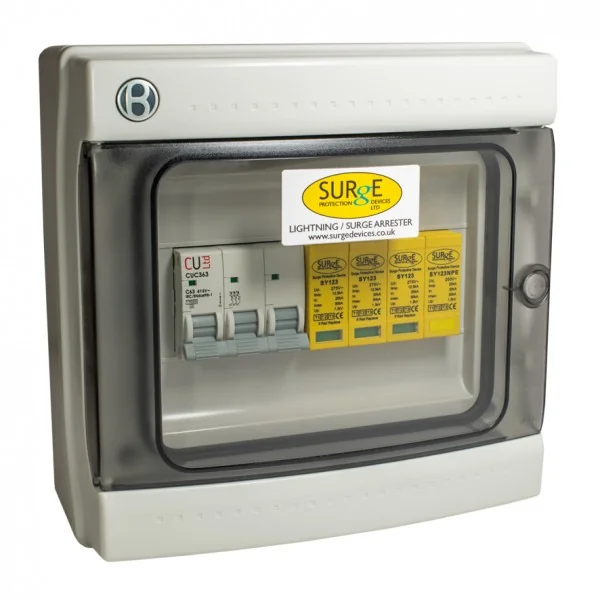

Surge Protection SY12350KA4PENCM Type 1+2+3, 3 Phase Surge Protector with Window Indication Complete in IP65 Polycarbonate Enclosure Including 3 Pole 63A MCB 50kA

SY12350KA4PENCM

Est 3-4 day delivery (Subject to availability)
£417.60 inc Vat
£348.00 ex Vat
Free delivery for orders over £100 ex VAT

Type 1+2+3 50kA 3-Phase Surge Protection Kit – Complete IP65 Enclosure with MCB for Lightning & Surge Safety

This all-in-one surge protection solution provides robust lightning and transient overvoltage protection across Type 1, 2, and 3 categories. Designed for 3-phase systems, it includes a high-performance 50kA surge arrester, a 63A MCB, and is housed in a durable IP65-rated polycarbonate enclosure—ideal for use in commercial and industrial settings.

  • Type 1+2+3 Combined Protection: Handles direct lightning strikes and protects sensitive electronics across all installation types (TT, TNC-S, TN-S).
  • High Surge Capacity: 50kA discharge rating with 10/350μs waveform and lightning protection Level 3 for full compliance and performance.
  • Visual & Remote Status Monitoring: Window status indicator and remote contacts for BMS, alarm, or signal integration.
  • Complete Installation Kit: Includes 3-pole 63A MCB, DIN rail mounting, and a robust IP65 polycarbonate enclosure.
  • Low Let-Through Voltage: <1.3kV for superior protection of downstream equipment and minimal disruption.
Technical Specification
  • Surge Protection Type: Type 1+2+3 Combined Arrester
  • Surge Rating: 50kA (10/350μs)
  • Enclosure: IP65 Polycarbonate, Pre-wired with 63A 3-Pole MCB
  • System Compatibility: TT, TNC-S, TN-S
  • Compliance: BS EN 62305, BS EN 61643-11, BS 7671

✅ Install this complete surge protection kit for top-level lightning defence and peace of mind in 3-phase installations.

Technical Information
Product Surge Protection Device
Type Type 1+2+3
Ingress Protection IP65
Number Of Poles Triple Pole (3P)
Enclosed Y
Number Of Phases Three
