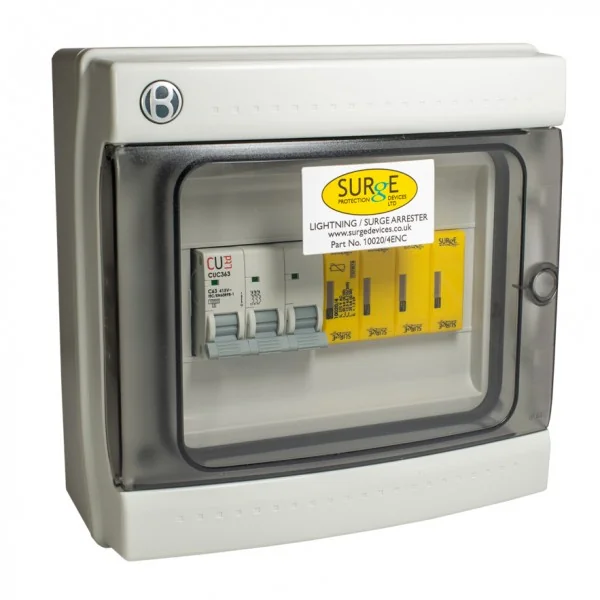

Surge Protection 10020/4ENCM Type 1+2+3 (Level 3/4) 3 Phase Surge Protector Device with Indication Complete in IP65 Polycarbonate Enclosure Including 3 pole 63AMP MCB 50KA

Type 1+2+3 50kA 3-Phase Surge Protector – Complete IP65 Enclosure with 63A MCB & Visual Indication

This high-performance Type 1+2+3 surge protection device is engineered for 3-phase installations requiring robust lightning and transient voltage protection. Supplied in a pre-assembled IP65 polycarbonate enclosure with a 63A MCB, it offers a reliable, standards-compliant solution with fast response time and safe disconnection features.

• Comprehensive Lightning Protection: Type 1+2+3 combined arrester rated at 50kA (10/350μs) to protect against direct lightning strikes and surges.
• High-Speed Response: Reacts in under 25ns with low let-through voltage of <1.2kV for optimal equipment protection.
• Built-In Safety Indicators: Visual status window with optional remote contacts for integration with BMS, alarms, or indicators.
• Installer-Ready Enclosure: Supplied in IP65 polycarbonate housing complete with 3-pole 63A MCB for a fully compliant setup.
• Self-Extinguishing & Maintenance Friendly: Automatically extinguishes follow currents after activation and features DIN rail mounting with pluggable modules.

Technical Specification

• Surge Protection Type: Type 1+2+3 Combined Arrester
• Surge Rating: 50kA (10/350μs)
• Response Time: <25ns
• Enclosure: IP65 Polycarbonate with 63A 3-Pole MCB
• Compliance: BS EN 62305, BS EN 61643-11, BS 7671

✅ Protect your 3-phase installations with this fully assembled, fast-acting surge protection kit – ideal for high-risk environments and critical systems.
