Surge Protection 10020/2ENC Type 1+2+3 (Level 3/4) Single Phase Surge Protector with Indication & Complete in IP65 Polycarbonate Enclosure 25kA

10020/2ENC

3 in stock for 2-3 day delivery see more info
£208.80 inc Vat
£174.00 ex Vat
Free delivery for orders over £100 ex VAT

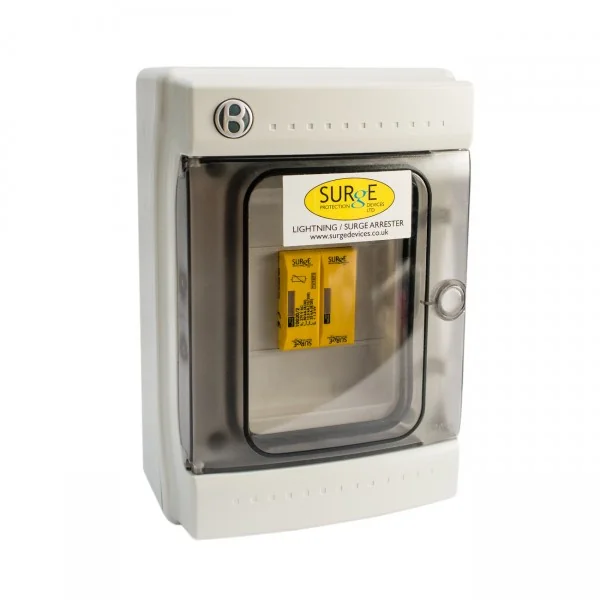

Type 1+2+3 25kA Single-Phase Surge Protector – Complete in IP65 Enclosure with Visual Indication

This Type 1+2+3 surge protection device is designed for single-phase systems requiring robust protection against lightning strikes and transient overvoltages. Supplied in a durable IP65-rated polycarbonate enclosure, it offers fast response, low let-through voltage, and advanced safety features—ideal for residential, commercial, and light industrial installations.

  • Full Lightning & Surge Protection: Handles 25kA (10/350μs) surge currents, meeting Lightning Protection Level 3/4 for effective protection against direct and indirect strikes.
  • High-Speed Operation: Responds in under 25ns with a let-through voltage of less than 1.2kV, ensuring sensitive equipment remains protected.
  • Status Monitoring & Remote Signalling: Visual indication built in, with remote changeover contacts for connection to BMS, alarms, or warning indicators.
  • Safe & Serviceable Design: Automatically extinguishes follow currents after activation and features DIN rail mounting with pluggable modules for quick replacement.
  • Preassembled for Installer Convenience: Housed in a weatherproof IP65 polycarbonate enclosure with recommended 63A backup fuse and 25mm² cable size.
Technical Specification
  • Surge Protection Type: Type 1+2+3 Combined
  • Surge Rating: 25kA (Lightning Protection Level 3/4, 10/350μs)
  • Response Time: <25ns
  • Enclosure: IP65 Polycarbonate
  • Compliance: BS EN 62305, BS EN 61643-11, BS 7671

✅ Choose this Type 1+2+3 SPD for high-performance, standards-compliant surge and lightning protection in single-phase installations.

Technical Information
Product Surge Protection Device
Type Type 1+2+3
Ingress Protection IP65
Enclosed Y
Number Of Phases Single
