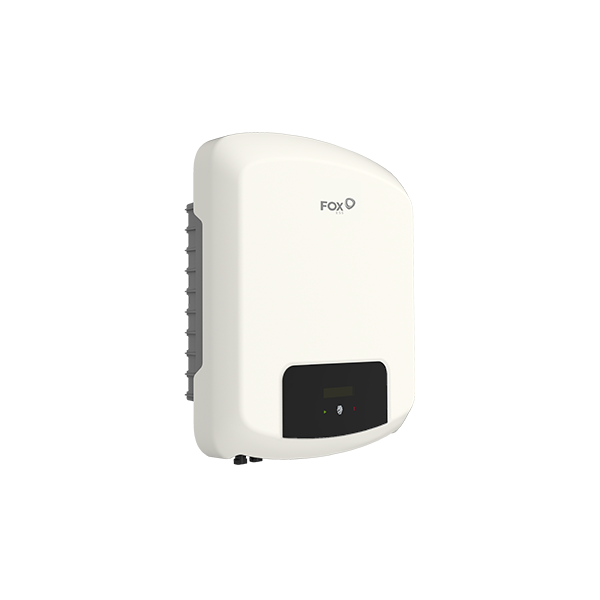

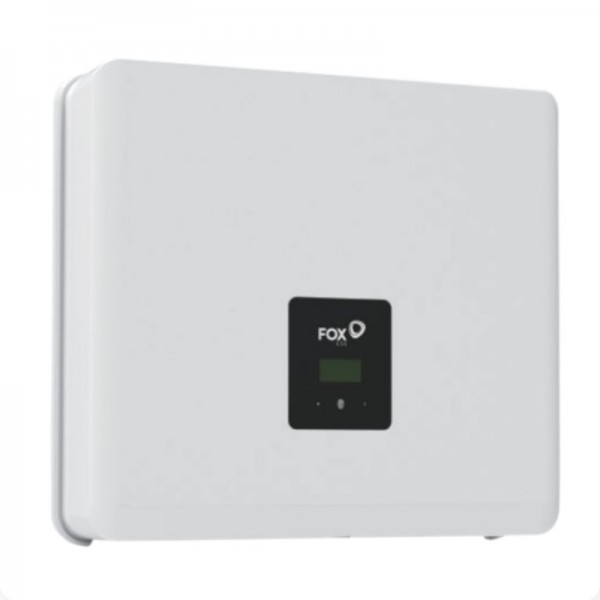

Fox ESS F Series (G3) F3600 3.6kW 1ph 2MPPT String Inverter
F3600
Est. 2-4 day delivery. Get in touch for more details.
£366.00
inc Vat
£305.00
ex Vat
Free delivery for orders over £100 ex VAT
Fox ESS F Series F3600 (G3) 3.6kW String Inverter - Single Phase, Dual MPPT, High-Performance Design
The Fox ESS F3600 (G3) inverter is a high-efficiency single-phase solution featuring dual MPPT tracking for improved system flexibility and performance. Designed for residential installations, it delivers reliable energy generation with advanced cooling and smart monitoring capabilities.
- Dual MPPT Performance: Two MPPT trackers maximise energy harvest across multiple roof aspects or string layouts.
- Battery Ready: Fully optimised for integration with Fox ESS battery storage systems.
- Remote Monitoring: Monitor system performance via smartphone or web portal for full control and visibility.
- Advanced Cooling Design: Natural convection cooling ensures silent operation with no internal fans.
- Durable IP65 Construction: Weather-resistant design suitable for internal or external installations.
Technical Specification
- Model: F3600 (G3)
- Output Power: 3.6kW
- Phase: Single phase
- MPPT: 2 trackers
- IP Rating: IP65
✅ Specify the Fox ESS F3600 inverter for flexible, efficient, and future-ready solar installations.
Description
Technical Specification
Input Specifications
- Input Specifications Max Input Power- 5400W
- Max Input Voltage- 600V
- Start Up Input Voltage- 120V
- Rated Input Voltage- 360V
- MPPT Operating Voltage Range- 80-550
- Max Input Current- 12.5A
- Max Short Circuit Current- 15A
Output Specifications
- Rated Output- 3600W
- Max Output Apparent Power- 3960VA
- Rated Grid Voltage- 220/230/240V
- Rated Grid Frequency- 50/60HZ
General Data
- Dimensions- 402 x 476.5 x 148 mm
- Weight- 15.5 KG
- IP65
Technical Information
| Range | Fox F Series |
| Product | String Inverter |
| Type | String |
| Nominal Power Output | 3.6 kW |
