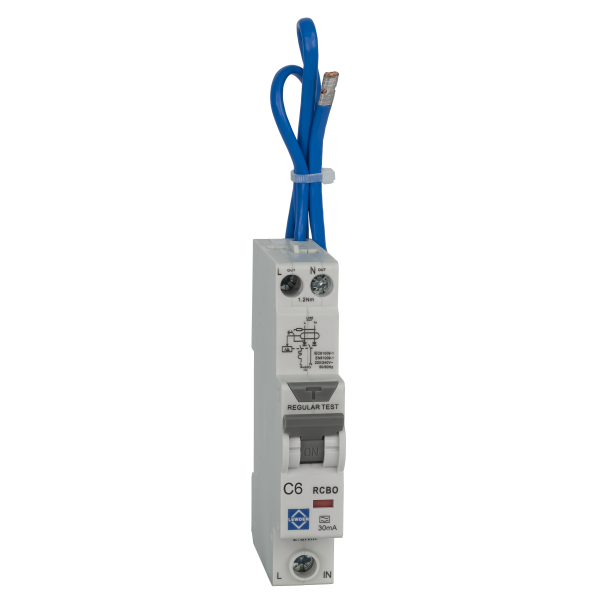

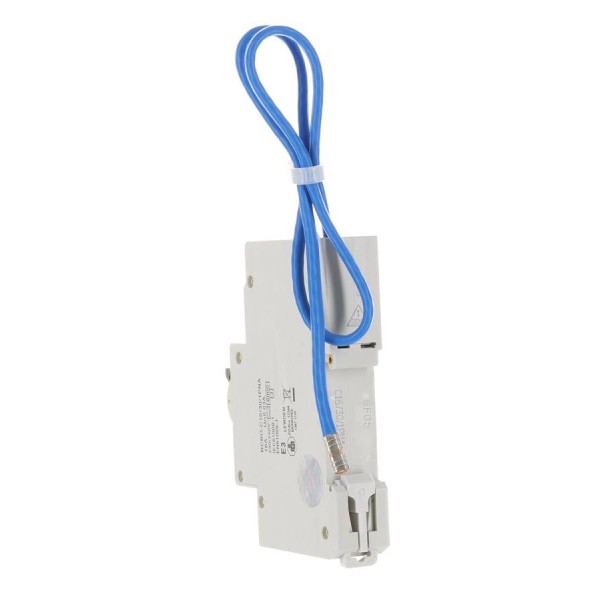

Lewden RCBO-C06/30/1PNA Compact Double Pole C Curve Type RCBO With Switched Neutral 1P+N 6A 30mA

RCBO-C06/30/1PNA

Est 3-4 day delivery (Subject to availability)
£23.12 inc Vat
£19.27 ex Vat
Free delivery for orders over £100 ex VAT

Compact Double Pole C Curve Type A RCBO – 1P+N, 6A, 30mA with Switched Neutral for Enhanced Protection

This compact RCBO integrates residual current and overcurrent protection in a space-saving double-pole design. Featuring a C curve tripping characteristic and a switched neutral, it provides reliable circuit protection for both residential and commercial applications, ensuring enhanced safety and compliance.

  • Compact Double Pole Design: 1P+N configuration for easy installation in consumer units and distribution boards.
  • C Curve Tripping Characteristic: Suitable for circuits with higher inrush currents, such as inductive loads and motor-driven equipment.
  • Type A RCD Protection: Detects AC and pulsating DC residual currents, ensuring superior safety.
  • Switched Neutral Feature: Enhances protection by isolating both live and neutral conductors during disconnection.
  • 6A Rated Current: Ideal for safeguarding low-power circuits against overloads and faults.
  • 30mA Sensitivity: Provides effective shock protection and leakage detection.
  • 6kA Breaking Capacity: Ensures durability and reliable short-circuit protection.

Technical Specification

  • Configuration: 1P+N (Single Pole + Neutral)
  • Tripping Curve: C Curve
  • Residual Current Type: Type A
  • Rated Current: 6A
  • Breaking Capacity: 6kA
  • Rated Residual Operating Current: 30mA
  • Neutral Switching: Yes
  • Mounting: DIN Rail
  • Standards Compliance: IEC/EN 61009-1

Upgrade your electrical system with this robust RCBO, designed for superior protection and performance!

Description



Technical Information
Ean Code 5026992045367
Trip Type C Curve Type A
Sensitivity 30 mA
Product RCBO
Type Singe Pole Compact
Voltage 230 V
Pole Configuration SP+N
Current Rating 6A
Rcd Sensitivity 30 mA
Number Of Poles Double Pole (2P)
Number Of Modules 1
