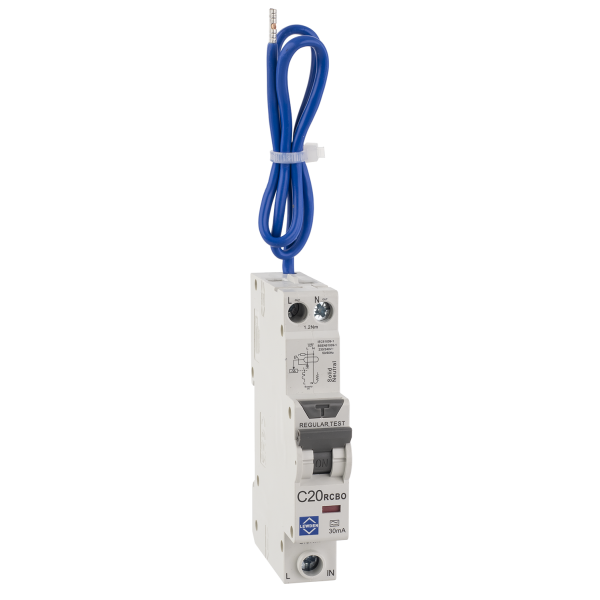

Lewden RCBO-C20/30/SPA 1 Module Single Pole Type C RCBO 20A 30MA
RCBO-C20/30/SPA
The Lewden RCBO Type C 30MA and 6KA. 1 Pole Plus Neutral, designed and tested for use with Lewden Distribution boards. RBCO is the replacement from the older RCBO-20/30/1M/CA when stock has run through from Lewden.
- Rated current 20A
- Trip curve C
- RCD Class A
- For cables ø 1-16mm2
- Breaking capacity 6
- Frequency 50/60Hz
- Poles 1P+N
- Rated operating voltage 230V
- Execution DIN RAIL MOUNTING
- Residual Current 30mA
Trip Type | Type C |
Short Circuit Rating | 6 kA |
Product | RCBO |
Type | Standard |
Pole Configuration | SP+N |
Mounting | DIN Rail |
Current Rating | 20A |
Rcd Sensitivity | 30 mA |
Number Of Poles | Single Pole (1P) |
