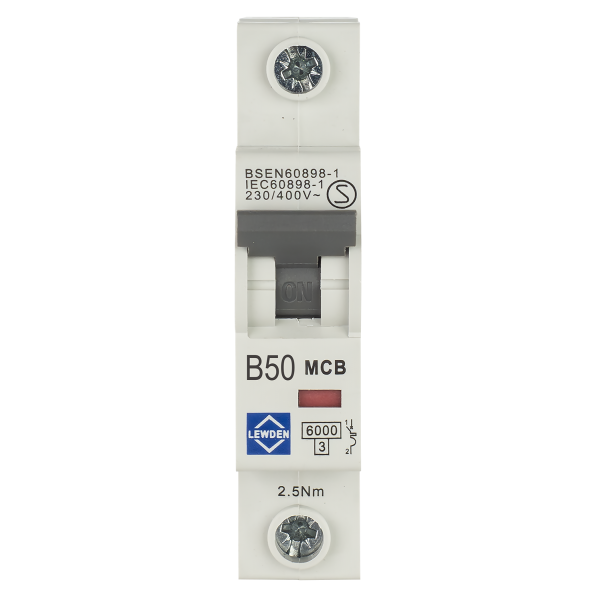

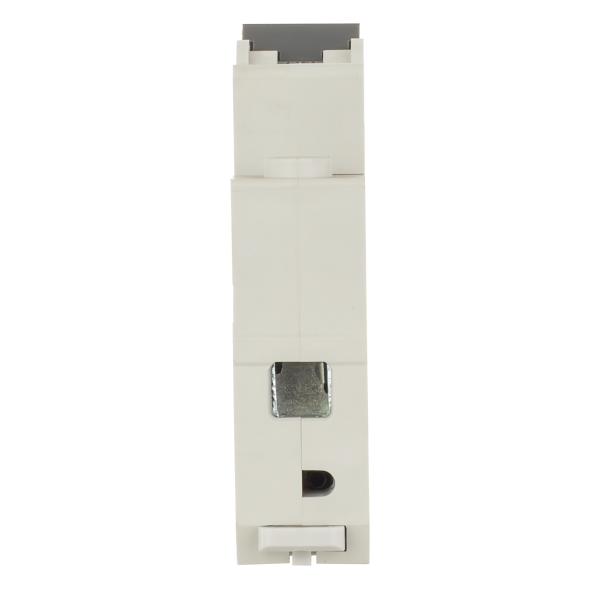

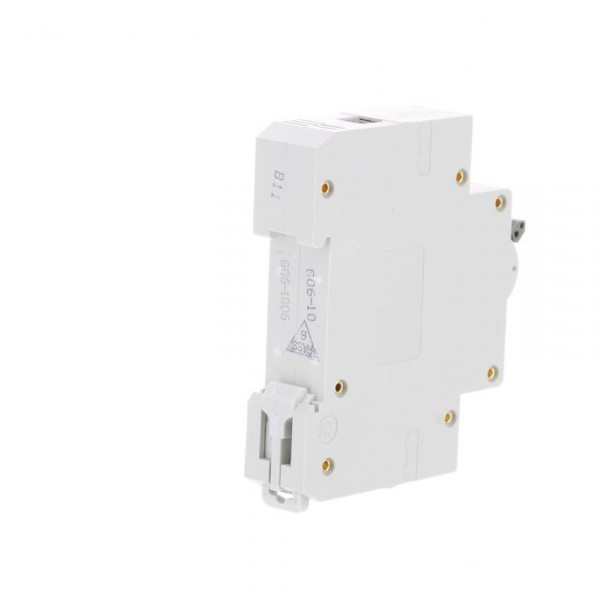

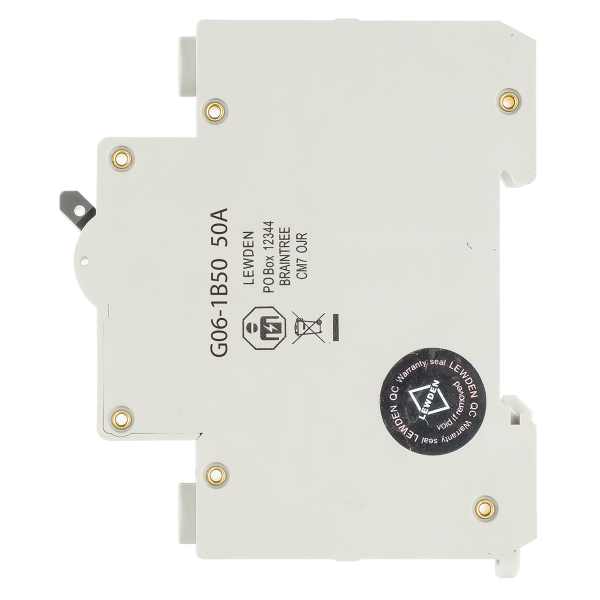

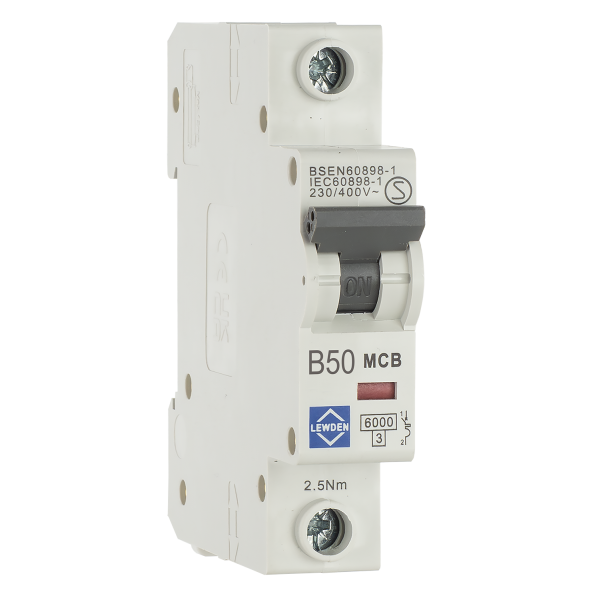

Lewden G06-1B50 1 Module Single Pole B Curve/Type B Miniature Circuit Breaker MCB 50A 6kA
G06-1B50
14 in stock for next day delivery see cut off times
56 in stock for 2-3 day delivery see more info
£2.39
inc Vat
£1.99
ex Vat
Free delivery for orders over £50 ex VAT
Lewden G06-1B50 1 Module Single Pole 40A 6kA Type B Miniature Circuit Breaker for installation into Lewden's range of domestic Amendment3 consumer units providing protection for cables, lighting circuits and heating loads.
DIN rail mounted, it has a B curve and short circuit breaking capacity of 6kA making it suitable for the full range of domestic circuit protection requirements. These Lewden Miniature Circuit Breakers MCBs detect overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation.
DIN rail mounted, it has a B curve and short circuit breaking capacity of 6kA making it suitable for the full range of domestic circuit protection requirements. These Lewden Miniature Circuit Breakers MCBs detect overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation.
Description
• Type B tripping characteristics complies with BS EN 60898
• Connection capacity : For cables ø 1-25 mm²
• Suitable for the Lewden range of Amendment3 consumer units
• Single Pole
• 6kA breaking capacity
• For use on 230/400V circuits with a 63A max. rated current
Technical Information
| Ean Code | 5026992048214 |
| Trip Type | B Curve |
| Short Circuit Rating | 6kA |
| Cable Capacity | 25 mm2 |
| Product | MCB |
| Type | Single Pole |
| Voltage | 230 V |
| Unit Weight | 0.092 kg |
| Pole Configuration | Single Pole (1P) |
| Mounting | DIN Rail |
| Width | 18 mm |
| Depth | 75.5 mm |
| Current Rating | 50A |
| Standards | BS EN 60898 |
| Ce Approved | Y |
| Number Of Poles | Single Pole (1P) |
| Height | 81.5 mm |
| Number Of Modules | 1 |
