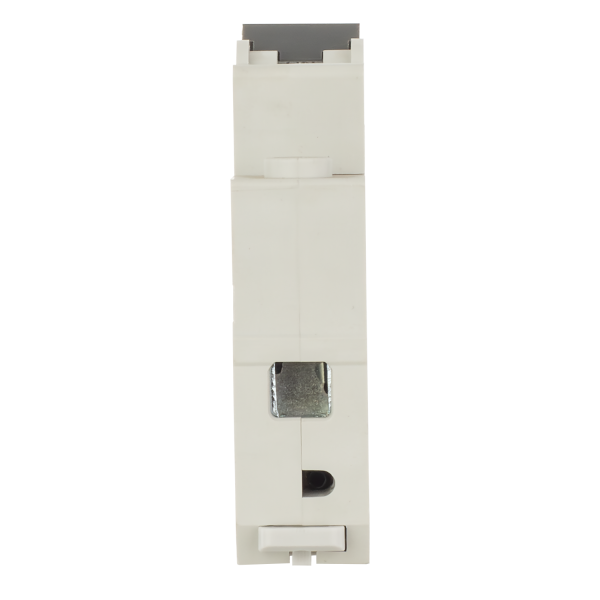

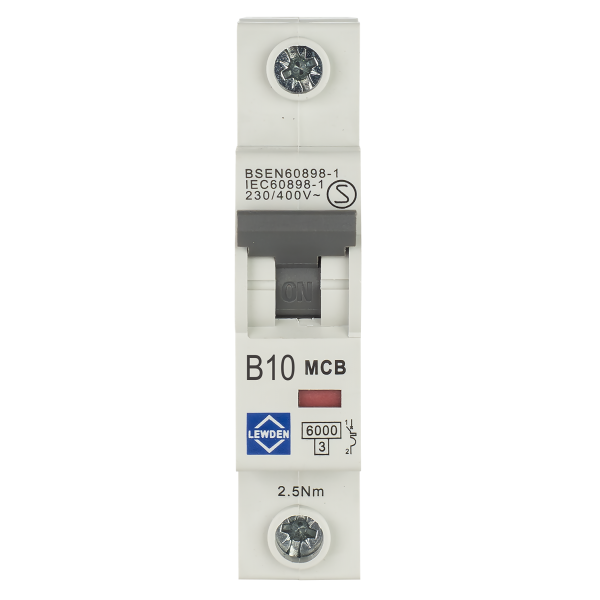

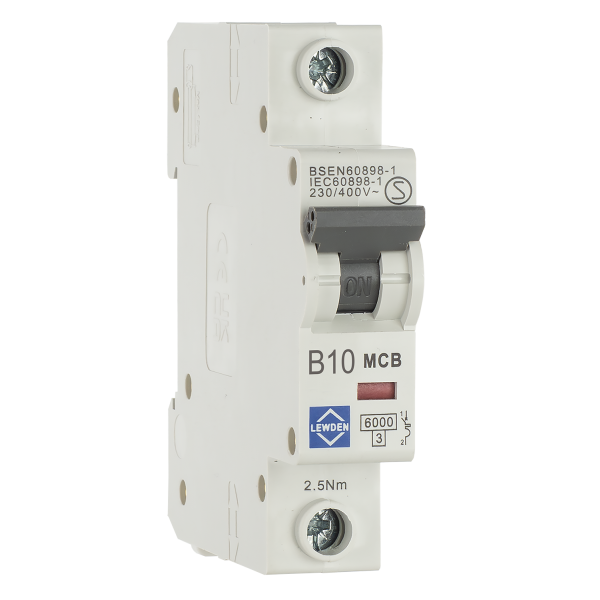

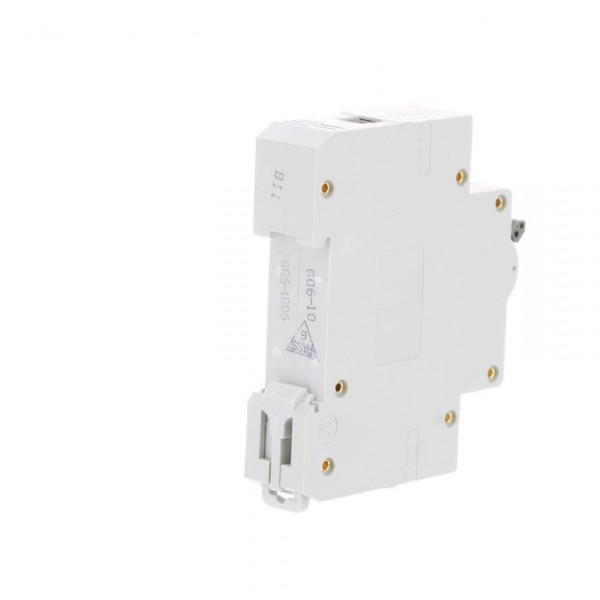

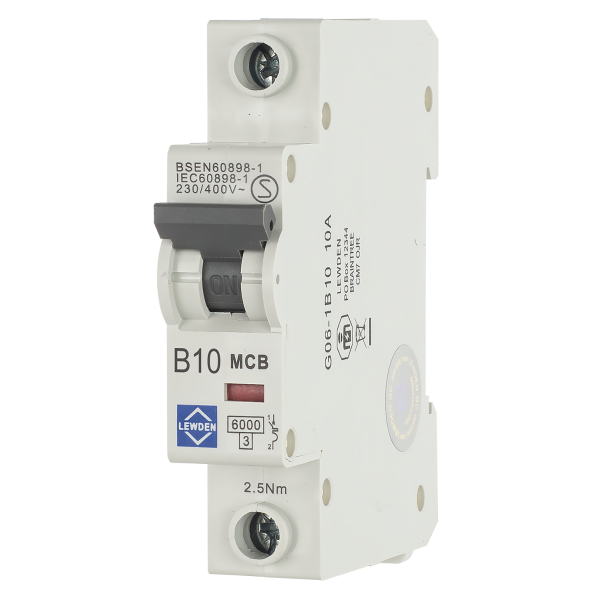

Lewden G06-1B10 1 Module Single Pole Type B Miniature Circuit Breaker MCB 10A 6kA
G06-1B10
DIN rail mounted, it has a B curve and short circuit breaking capacity of 6kA making it suitable for the full range of domestic circuit protection requirements. These Lewden Miniature Circuit Breakers MCBs detect overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation.
• Type B tripping characteristics complies with BS EN 60898
• Connection capacity : For cables ø 1-25 mm²
• Suitable for the Lewden range of Amendment3 consumer units
• Single Pole
• 6kA breaking capacity
• For use on 230/400V circuits with a 63A max. rated current
Ean Code | 5026992048160 |
Trip Type | Type B |
Short Circuit Rating | 6 kA |
Cable Capacity | 25 mm2 |
Product | MCB |
Voltage | 230 V |
Unit Weight | 0.092 kg |
Pole Configuration | Single Pole (1P) |
Mounting | DIN Rail |
Width | 18 mm |
Depth | 75.5 mm |
Current Rating | 10A |
Standards | BS EN 60898 |
Ce Approved | Y |
Number Of Poles | Single Pole (1P) |
Height | 81.5 mm |
Number Of Modules | 1 |
