New

Termination Technology PREM20GALV-25M Premflex® Bare Galvanised Steel Flexible Conduit IP40 20mm 25m Reel

PREM20GALV-25M

5 in stock for 2-3 day delivery see more info
£38.34 inc Vat
£31.95 ex Vat
Free delivery for orders over £100 ex VAT

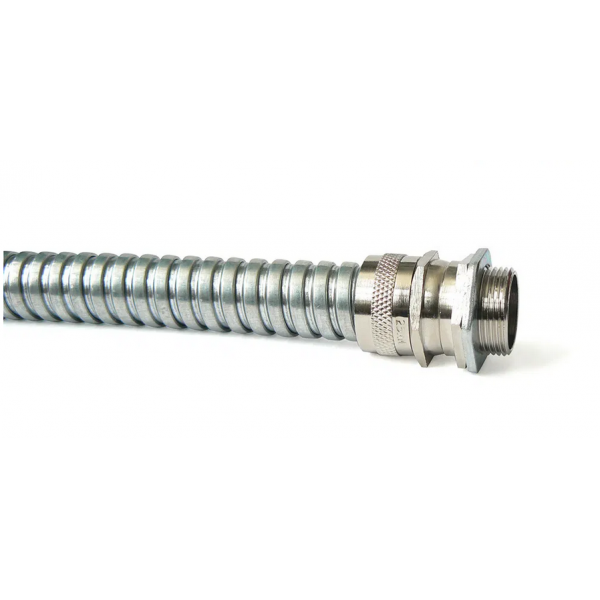

Termination Technology Premflex® PREM20GALV-25M – 20mm Bare Galvanised Steel Flexible Conduit, 25m Coil

The Termination Technology Premflex® PREM20GALV-25M is a durable galvanised steel flexible conduit designed for professional cable protection. Offering high mechanical strength, fire safety, and reliability, this 25m coil is ideal for larger installations where extra length is required.

  • Heavy-Duty Design: Bare galvanised steel conduit offering superior durability and impact resistance.
  • Safe & Compliant: Low fire hazard risk, manufactured to BS EN 61386 standards for professional installations.
  • Extreme Temperature Range: Operates continuously from -100°C to +300°C for demanding environments.
  • Ingress Protection: Rated IP40 when fitted with compatible glands.
  • Extended Length: Supplied as a 25m coil for greater coverage on-site.
Technical Specification
  • Nominal Size: M20
  • Coil Length: 25m
  • Internal Diameter: 17.5mm
  • External Diameter: 21.5mm
  • Temperature Range: -100°C to +300°C
  • Ingress Protection: IP40 (when fitted with glands)

✅ Choose the Termination Technology Premflex® PREM20GALV-25M for reliable, heavy-duty conduit protection with extended coil length for larger installations!

Technical Information
Range Term Tech Premflex®
Product Flexible Conduit
Type Flexible
Ingress Protection IP40
Diameter 20 mm
Length 25000 mm
Material Steel
Finish Galvanised
Standards EN 45545 BS 6855 DIN 5510-2
Qualifier Flexible
Ce Approved Y
Nominal Width 20 mm
Normal Operating Minimum Temperature -100 Degrees C
Normal Operating Maximum Temperature 300 Degrees C
