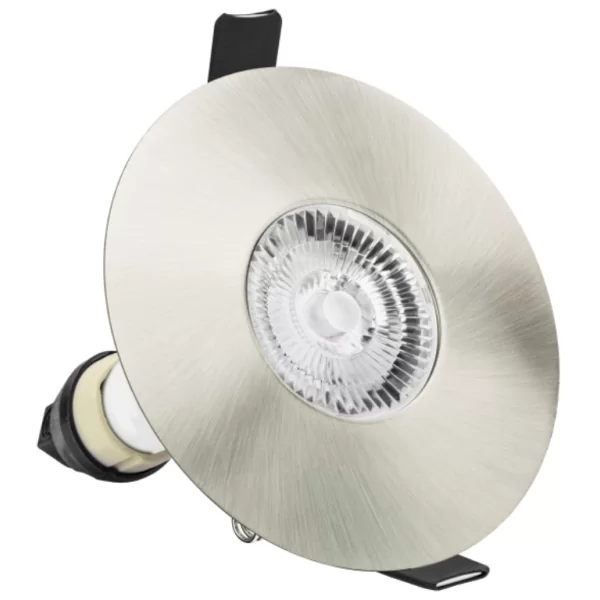

Integral LED ILDLFR70D016 EvoFire Satin Nickel Pressed Steel Round Fixed Fire-Rated LED Downlight With Glass Lens IP65 GU10 240V Dia ⌀: 112mm - Recess Depth: 38mm - Cut-Out: 70-100mm
ILDLFR70D016
Integral LED ILDLFR70D016 EvoFire Round Fire-Rated Downlight – Satin Nickel IP65 GU10 for 70–100mm Cut-Outs
The ILDLFR70D016 EvoFire is a robust fire-rated downlight with a premium satin nickel finish, designed for GU10 LED lamps. Ideal for both new installs and retrofits, it fits larger cut-outs up to 100mm. Its open housing ensures superior airflow around the lamp, helping reduce heat build-up and enhance lamp performance and lifespan. With a minimalist 1mm bezel and IP65 rating, this fitting delivers both safety and style for domestic or commercial use.
- Wide Cut-Out Compatibility: Designed to fit 70–100mm ceiling cut-outs with a 112mm outer bezel diameter.
- Improved Lamp Efficiency: Open design helps lamps run cooler, increasing LED lifespan and reliability.
- Fire-Rated Protection: Certified for 30, 60, and 90-minute fire resistance to BS476 Part 21:1987.
- Discreet Finish: Satin nickel 1mm bezel offers a flush, professional appearance in any setting.
- Installer-Friendly: Includes GU10 holder and loop-in/loop-out terminals for efficient fitting.
Technical Specification
- Max Lamp Wattage: 50W
- Input Voltage: 220–240V AC
- Dimmable: Yes (lamp dependent)
- Lamp Base: GU10
- IP Rating: IP65
Dimensions
- Diameter: 112mm
- Height: 38mm
- Cut-Out: 70–100mm
✅ Choose the EvoFire ILDLFR70D016 for a wider retrofit-ready solution with premium fire safety and a flush satin nickel finish.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 38 mm |
| Ean Code | 5055788236511 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Diameter | 112 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.18 kg |
| Ce Approved | Y |
| Cut-out Diameter | 70-100 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Satin Nickel |
| Overall Diameter | 112 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
