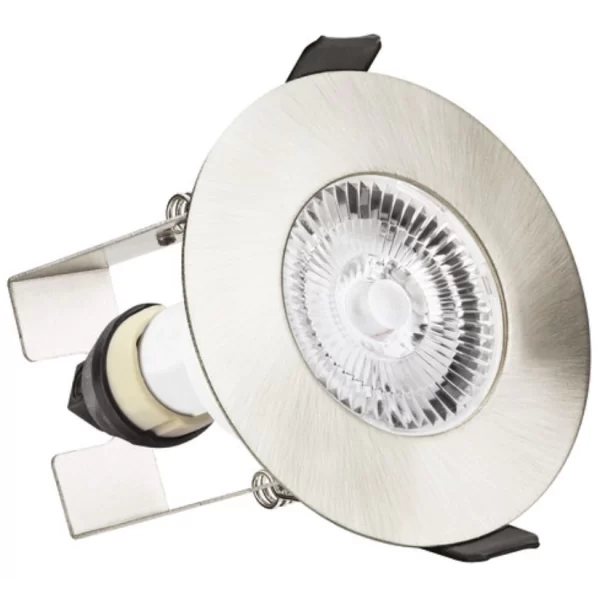

Integral LED ILDLFR70D004 EvoFire Satin Nickel Pressed Steel Round Recessed Fixed Fire-Rated LED Downlight With Glass Lens & Insulation Guard IP65 GU10 240V Dia ⌀: 85mm - Recess Depth: 109mm - Cut-Out: 70mm
ILDLFR70D004
Integral LED ILDLFR70D004 EvoFire Satin Nickel Fire-Rated Downlight – GU10, Fixed, IP65 with Insulation Guard
The ILDLFR70D004 EvoFire is a fire-rated recessed downlight designed for GU10 and MR16 LED lamps. With a slim 1mm blend-in bezel and pressed steel body, it offers a sleek, durable solution for safe and efficient LED installations—ideal for domestic and commercial settings alike.
- Enhanced Lamp Performance: Open-can design prevents heat build-up, extending LED lamp life and performance.
- Fire & Acoustic Compliant: Tested to BS476 Part 21 and compliant with Part B (fire), C (air tightness), L (energy), and E (sound).
- Integrated Insulation Guard: Allows insulation to be laid over the fitting safely without compromising airflow or safety.

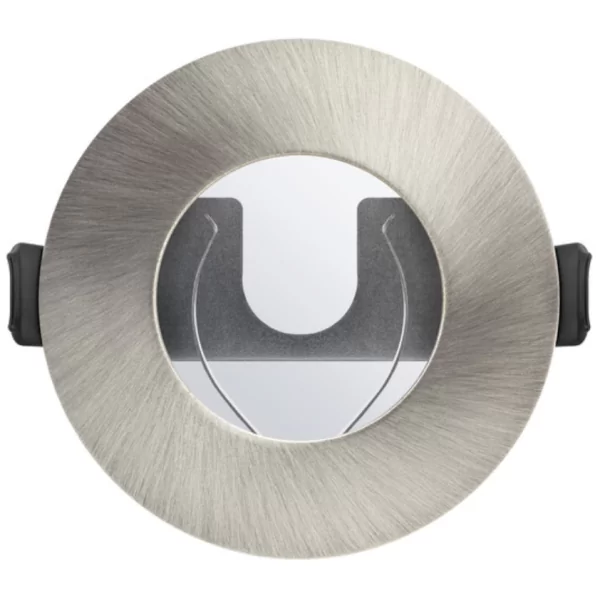

- Slim, Stylish Bezel: Ultra-thin 1mm satin nickel bezel sits almost flush for a clean, modern look.
- Quick, Secure Installation: Supplied with GU10 holder and loop-in/loop-out piano-key terminal block.
Technical Specification
- Max Lamp Wattage: 50W
- Lamp Base: GU10
- Voltage: 220–240V AC
- Dimmable: Yes
- IP Rating: IP65
Dimensions
- Diameter: 85mm
- Depth: 83mm
- Cut-Out Size: 70mm
✅ Choose the EvoFire Satin Nickel Downlight for reliable fire protection, modern aesthetics, and long-lasting LED performance.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 83 mm |
| Ean Code | 5055788228509 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.1 kg |
| Ce Approved | Y |
| Cut-out Diameter | 70 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Satin Nickel |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
