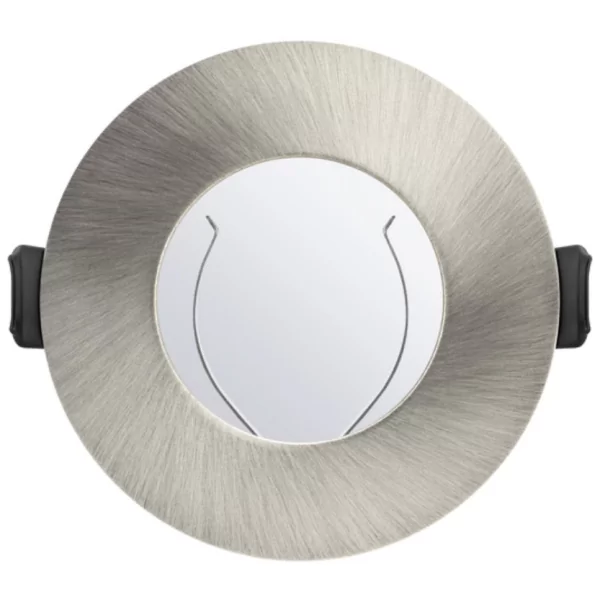

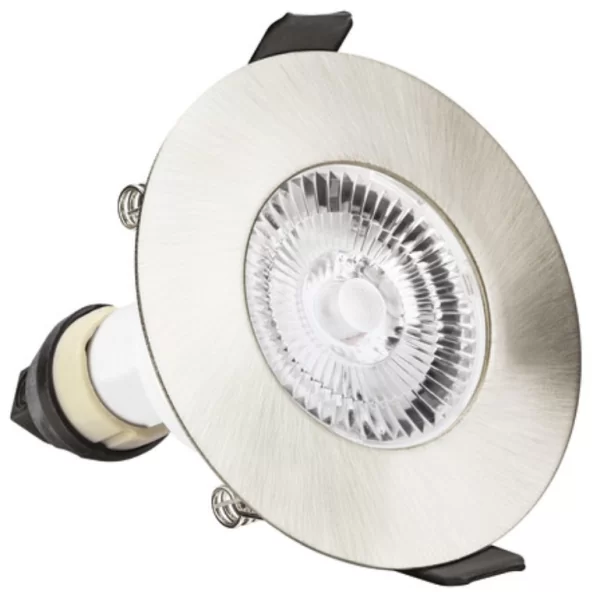

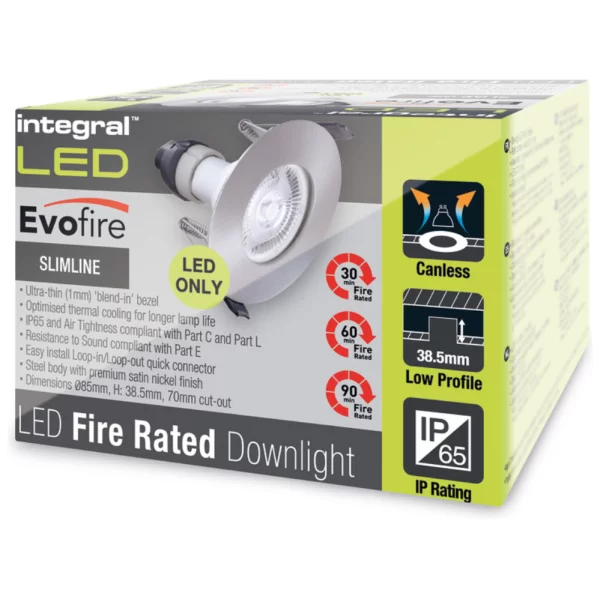

Integral LED ILDLFR70D002 EvoFire Satin Nickel Pressed Steel Round Fixed Fire-Rated LED Downlight With Glass Lens IP65 GU10 240V Dia ⌀: 85mm - Recess Depth: 39mm - Cut-Out: 70mm
ILDLFR70D002
Integral ILDLFR70D002 EvoFire Fire-Rated Downlight – Fixed GU10, Satin Nickel Bezel, IP65, 85mm
The Integral EvoFire ILDLFR70D002 is a robust and stylish fire-rated downlight, designed for GU10 or MR16 LED lamps. Its open-body construction enhances lamp longevity by reducing heat build-up, while the ultra-slim satin nickel bezel ensures a clean, modern finish.
- Improved Lamp Life: Open design helps lamps run up to 10°C cooler than conventional can-style housings.
- Discreet Finish: 1mm ultra-thin satin nickel bezel fits almost flush with the ceiling for a sleek appearance.
- Fire Safety Certified: Fire-rated for 30, 60, and 90 minutes to BS476 Part 21, compliant with Parts C, L, and E.
- Quick Installation: Loop-in/loop-out terminal block with piano-key style connections for fast fitting.
- Durable Steel Housing: Pressed steel construction with high-quality powder coating – built to last.
Technical Specification
- Max Lamp Wattage: 50W
- Input Voltage: 220–240V AC
- Lamp Base: GU10
- IP Rating: IP65
- Dimensions: 85mm (Dia) x 39mm (Depth), 70mm cut-out
✅ Choose the EvoFire Satin Nickel for a professional fire-rated solution that blends durability with modern style.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | MAINS VOLTAGE GU10 |
| Recess Depth | 39 mm |
| Ean Code | 5055788228387 |
| Range | Integral EVOFire |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | GU10 |
| Self-contained | N |
| Lamp Base | GU10 |
| Dimmable | N |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.07 kg |
| Ce Approved | Y |
| Cut-out Diameter | 70 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Glass Cover |
| Led Driver Included? | N |
| Emergency | N |
| Housing Material | Steel |
| Cover Material | Glass |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Satin Nickel |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | N |
| Number Of Lamps | 1 |
