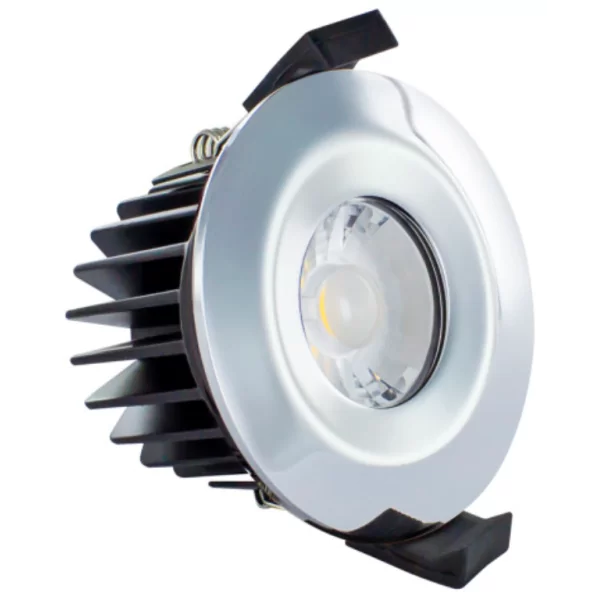

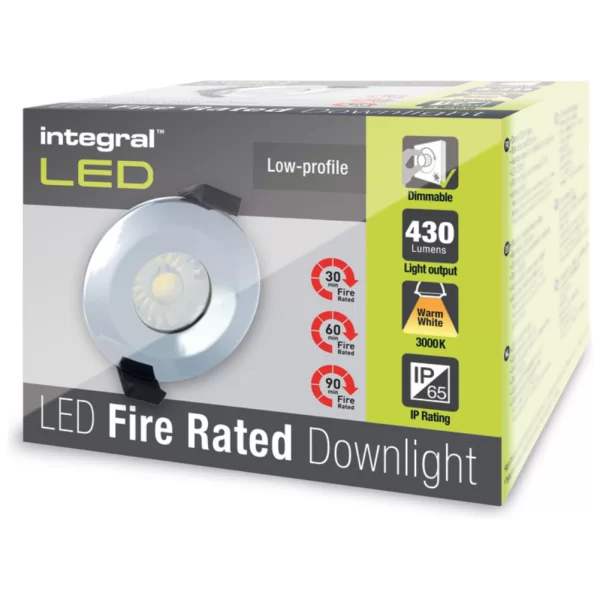

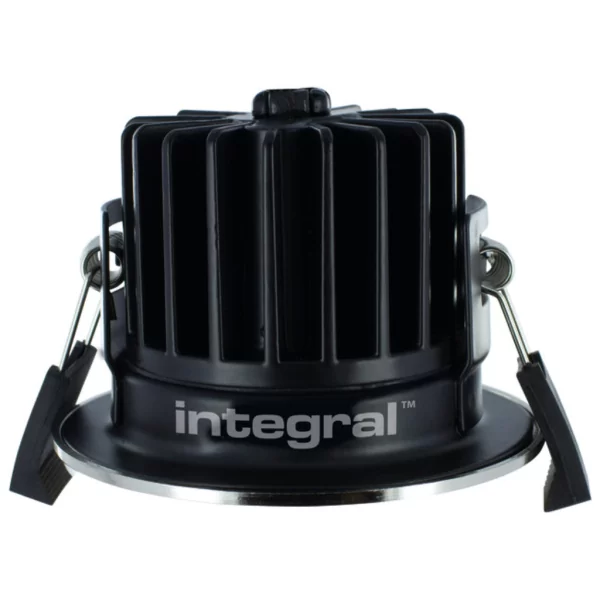

Integral LED ILDLFR70B008 Low Profile Series Polished Chrome Pressed Steel Dimmable Fixed Fire-Rated LED Downlight With Clear Lens & Warm White LEDs IP65 6W 430Lm 240V Dia ⌀: 85mm - Recess Depth: 58mm - Cut-Out: 70mm
ILDLFR70B008
Integral LED Low Profile Fire-Rated Downlight – 6W, 3000K Warm White, IP65, Chrome Bezel, 70–75mm Cut-Out, Dimmable
The Integral ILDLFR70B008 Fire-Rated Downlight combines elegant aesthetics with reliable performance. Featuring a polished chrome bezel, IP65 protection, and full fire rating compliance, this 6W dimmable downlight delivers a stylish and safe solution for bathrooms, kitchens, and residential applications.
- Fire & Building Regulation Compliant: Fire rated to 30, 60, and 90 minutes and compliant with Parts B, C, L, and E.
- Warm White Dimmable Output: Produces 430 lumens at 3000K for ambient, controlled lighting using compatible dimmers.
- Low-Profile Construction: Only 58mm deep – perfect for shallow ceiling voids or retrofit work.
- IP65 Rated with Chrome Bezel: Water-resistant and ideal for bathrooms and wet zones; supplied with polished chrome bezel for a modern finish.
- Fast Installation: Includes loop-in loop-out driver for quick, tidy wiring on-site.
Technical Specification
- Power: 6W (Equivalent to 40W)
- Input Voltage: 220–240V AC
- Luminous Flux: 430lm (72lm/W)
- Colour Temperature: 3000K Warm White
- Cut-Out Size: 70–75mm Ø
✅ Choose the Integral Chrome Fire-Rated Downlight for a stylish, dimmable, and fully compliant lighting upgrade!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | LED INTEGRATED |
| Recess Depth | 58 mm |
| Ean Code | 5055788225096 |
| Range | Integral Low Profile |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Dimmable | Y |
| Wattage | 6 W |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Beam Angle | 38 Degrees |
| Colour Temperature | 3000 K |
| Light Output | 430 Lm |
| Colour Rendering Index | >80 |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.28 kg |
| Standards | EN 60598 |
| Ce Approved | Y |
| Cut-out Diameter | 70-75 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Clear Cover |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Aluminium |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | Chrome |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Housing Colour | Black |
| Luminous Efficiency | 72 Lm/W |
