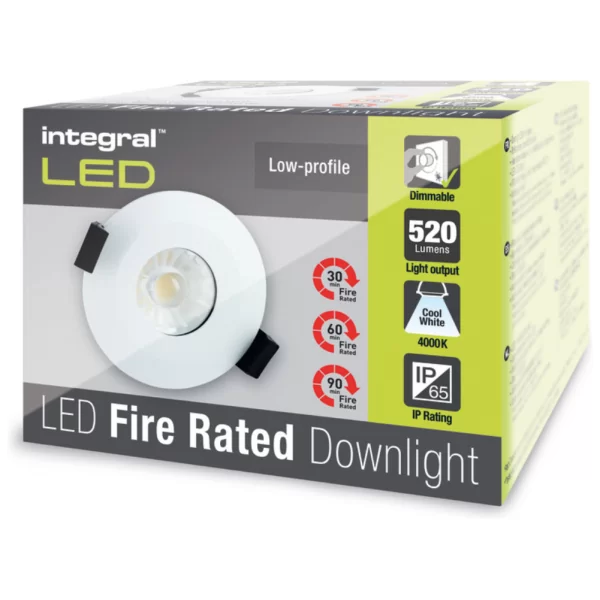

Integral LED ILDLFR70B003 Low Profile Series Matt White Pressed Steel Dimmable Fixed Fire-Rated LED Downlight With Clear Lens & Cool White LEDs IP65 6W 440Lm 240V Dia ⌀: 85mm - Recess Depth: 58mm - Cut-Out: 70mm
ILDLFR70B003
Integral LED Low Profile Fire-Rated Downlight – 6W, 4000K Cool White, IP65, 70–75mm Cut-Out, Dimmable
The Integral ILDLFR70B003 Fire-Rated Downlight delivers a crisp, cool white light in a slimline, IP65-rated housing. Fully fire-tested and compliant with UK building regulations, this 6W dimmable unit is ideal for modern bathrooms, kitchens, and commercial spaces where space-saving and performance are key.
- Fire & Regulation Compliant: Fire rated to 30, 60, and 90 minutes and meets Parts B, C, L, and E for full safety and performance.
- Ultra-Low Profile: At just 58mm deep, it fits neatly into shallow ceiling voids.
- Dimmable Cool White Output: Produces 440 lumens at 4000K with smooth dimming on compatible systems.
- Water-Resistant IP65 Rating: Perfect for use in wet zones such as bathrooms and kitchens.
- Quick Installation: Supplied with loop-in loop-out driver for fast, efficient wiring.
Technical Specification
- Power: 6W (Equivalent to 40W)
- Input Voltage: 220–240V AC
- Luminous Flux: 440lm (73lm/W)
- Colour Temperature: 4000K Cool White
- Cut-Out Size: 70–75mm Ø
✅ Specify the Integral Low Profile Dimmable Downlight for a compact, compliant, and high-quality lighting solution in wet or fire-rated environments!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Downlight Type | LED INTEGRATED |
| Ean Code | 5055788223405 |
| Range | Integral Low Profile |
| Product | LED Fire Rated Downlight |
| Photocell Included | N |
| Type | Downlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Dimmable | Y |
| Wattage | 6 W |
| Ingress Protection | IP65 |
| Diameter | 85 mm |
| Beam Angle | 38 Degrees |
| Colour Temperature | 4000 K |
| Light Output | 440 Lm |
| Colour Rendering Index | ?80 |
| Voltage | 220-240 V |
| Warranty | 3 Years |
| Unit Weight | 0.28 kg |
| Depth | 45 mm |
| Standards | EN-60598 |
| Cut-out Diameter | 70-75 mm |
| Mounting Type | Recessed |
| Mounting Position | Ceiling |
| Fire Rated | Y |
| Pir Included | N |
| Cover Included | Y |
| Cover Type | Clear Cover |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Aluminum |
| Cover Colour | Clear |
| Face Shape | Circular |
| Corrosion Resistant | N |
| Bezel/trim Colour | White |
| Overall Diameter | 85 mm |
| Adjustability | Fixed |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Number Of Lamps | 1 |
| Housing Colour | Black |
| Luminous Efficiency | 73 Lm/W |
