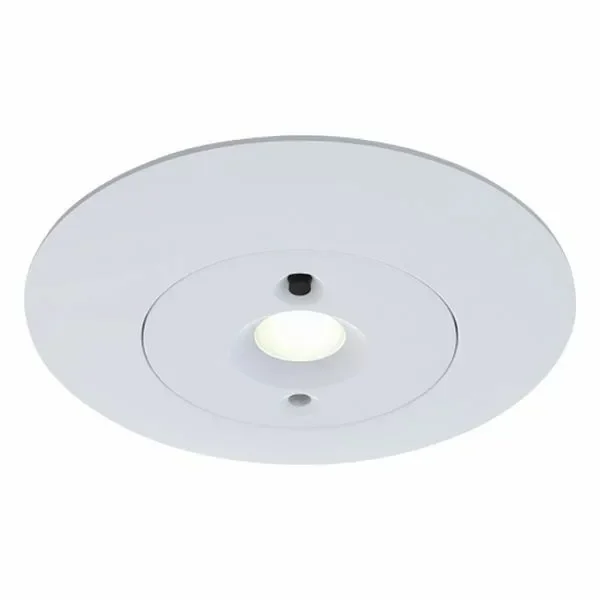

Ansell AMED/1/W/3NM Merlin White 3 Hour Non-Maintained Self-Test Emergency LED Downlight For Escape Route Illumination With Remote Driver & Battery Pack 2.5W 240V Dia ⌀: 85mm - Cut Out ⌀: 75mm

AMED/1/W/3NM

3 in stock for next day delivery see cut off times
£52.51 inc Vat
£43.76 ex Vat
Free delivery for orders over £100 ex VAT

Merlin 3hr Emergency LED Downlight – Self-Test, Remote Driver, Ideal for Escape Route Lighting

The Merlin Emergency LED Downlight is a compact, recessed solution designed for reliable escape route and open area illumination. With integrated self-test functionality and a remote driver and battery pack, it delivers high performance and ease of maintenance for compliant emergency lighting installations.

  • Ultra-Low Profile Design: Slim recessed housing allows discreet installation in shallow ceiling voids.
  • Interchangeable Optics: Supplied with lenses for both open area and escape route coverage, offering installation flexibility.
  • Enhanced Spacing Efficiency: Precision optics enable up to 17.8m spacing between fittings, reducing overall luminaire count and cost.
  • Self-Test Functionality: Integrated self-test operation ensures ongoing compliance with minimal maintenance; DALI version available.
  • Multiple Finishes: Available in black or white to match a range of ceiling designs.
Technical Specification
  • Operation: 3 Hour Non-Maintained, Self-Test
  • Power: 2.5W, 240V
  • Cut Out Size: ⌀ 75 mm
  • Overall Diameter: ⌀ 85 mm
  • Mounting: Recessed with remote driver & battery pack

✅ Install the Merlin Emergency Downlight for cost-effective, compliant escape route illumination with built-in self-test reliability!

Technical Information
Range Ansell Merlin
Product LED Emergency Downlight
Type Non-Maintained
Lamp Type LED Fixed
Wattage 2.5 W
Ingress Protection IP20
Diameter 85 mm
Beam Angle 140 Degrees
Colour Temperature CCT
Light Output 247 Lm
Voltage 230 V
Warranty 3 Years
Depth 57 mm
Standards ROHS BS EN 60598
Emergency Type Non-Maintained
Ce Approved Y
Cut-out Diameter 75 mm
Mounting Type Recessed
Mounting Position Ceiling
Fire Rated N
Led Driver Included? Y
Emergency Y
Bezel/trim Colour White
Overall Diameter 85 mm
Adjustability Fixed
Housing Colour White
