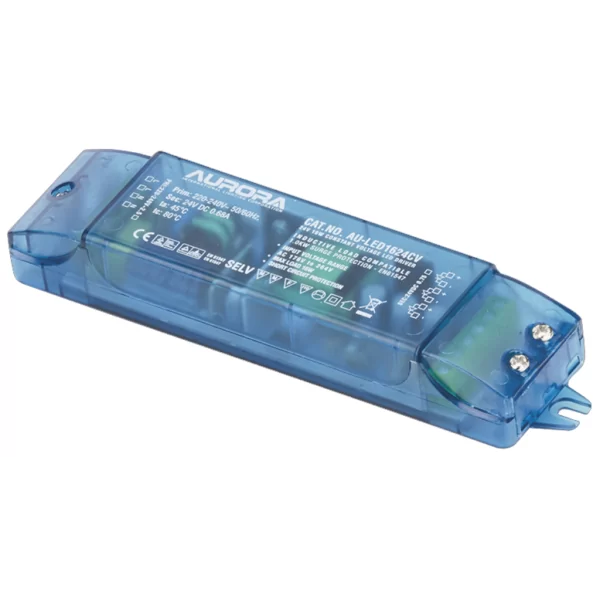

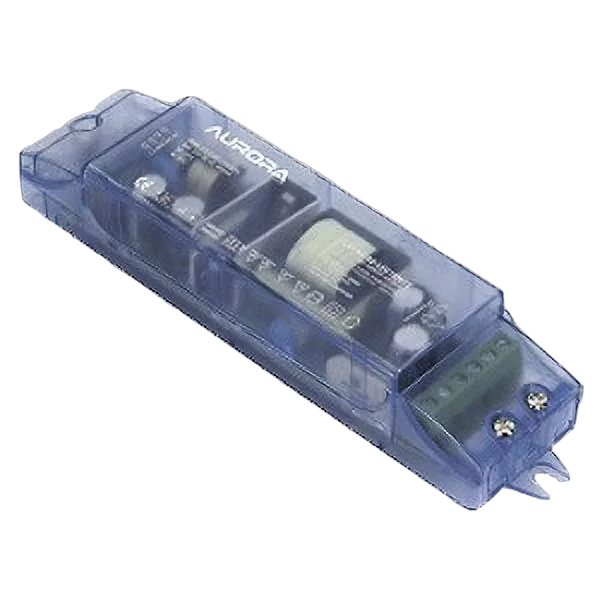

Aurora Lighting AU-LED1624CV Blue Non-Dimmable Constant Voltage LED Driver With 1kW Surge Protection 1W-16W 24V DC L:156mm x W:38mm x D:24mm
AU-LED1624CV
Blue Constant Voltage LED Driver – 24V DC, 1–16W, Non-Dimmable with 1kV Surge Protection & Loop-In/Loop-Out Terminals
This Blue Non-Dimmable Constant Voltage LED Driver delivers reliable 24V DC output for low-voltage LED lighting applications. With 1–16W power capacity, 1kV surge protection, and a robust set of safety features, it is ideal for parallel-wired installations. Featuring loop-in/loop-out terminals, an integrated earth terminal, and three secondary outputs, it simplifies installation—no junction box required.
- 24V Constant Voltage Output: Designed to power low-voltage 24V DC LED fittings efficiently across a 1–16W range.
- Non-Dimmable Operation: Provides a stable, flicker-free output for fixed light levels.
- 1.0kV Surge Protection: Built-in surge resistance safeguards LED fittings against voltage spikes, compliant with EN 61547.
- Parallel Wiring Only: Supports parallel circuit configurations with three secondary output terminals for multiple fittings.
- Loop-In/Loop-Out Terminals: Simplifies connection of multiple drivers or circuits without additional junction boxes.
- Integrated Earth Terminal: Ensures earth continuity in installations using metallic fittings.
- Advanced Protection Features: Includes short-circuit and thermal protection to prevent component damage.
- Registered Design: Compact form factor with Registered Community Design No. 001886730 for modern, discreet integration.
Technical Specification
- Power Output: 1–16W
- Output Voltage: 24V DC (constant voltage)
- Dimming: Non-dimmable
- Surge Protection: 1.0kV
- Wiring: Parallel only
- Secondary Outputs: 3 terminals
- Primary Terminals: Loop-in / loop-out
- Earth Terminal: Integrated
- Protection: Short-circuit, thermal
- Design Registration: 001886730
- Dimensions: 156mm (L) x 38mm (W) x 24mm (D)
✅ Install this Blue 24V Driver for safe, surge-protected performance with simple, junction-box-free wiring—perfect for modern low-voltage LED systems!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Power Rating (va) | 1-16 VA |
| Primary Voltage | 220-240 V |
| Ean Code | 5055155458744 |
| Secondary Voltage | 24 V |
| Secondary Voltage Type | DC |
| Product | LED Driver |
| Type | Constant Voltage |
| Dimmable | N |
| Wattage | 1 W |
| Colour | Blue |
| Length | 156 mm |
| Warranty | 3 Years |
| Unit Weight | 0.094 kg |
| Mounting | Surface |
| Width | 38 mm |
| Depth | 24 mm |
| Frequency | 50-60 Hz |
| Ce Approved | Y |
| Height | 156 mm |
| Fire Rated | N |
| Maximum Operating Temperature | 45 Degrees C |
| Number Of Phases | Single |
| Adjustability | Fixed |
