Vent Axia BAS100B 436519 Basics White Wall / Ceiling Axial Extractor Fan For Remote Switching IP44 32dB(A) 100mm / 4 Inch 240V
436519

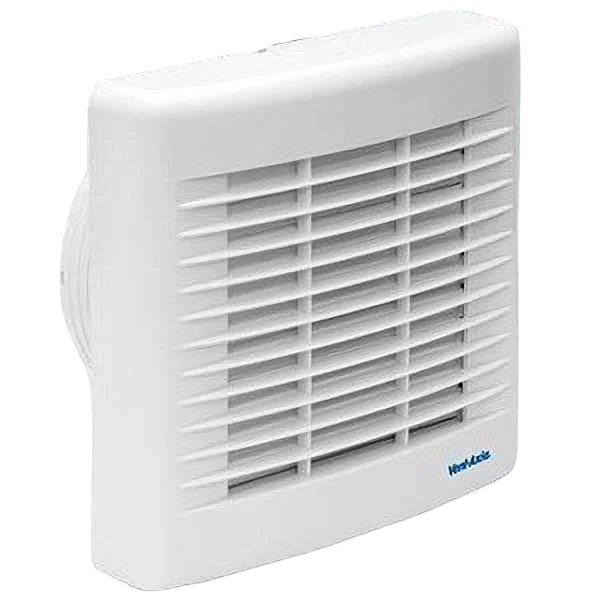

Vent-Axia BAS100B Axial Extractor Fan for Remote Switching (IP44, 100mm/4", 240V)
The Vent-Axia BAS100B is a mains voltage 100mm (4-inch) axial extractor fan, designed for wall or ceiling installation with remote or light switch operation. Its unshuttered design ensures effective ventilation, making it ideal for bathrooms, WCs, and small spaces.
- Compact & Discreet: Perfect for low-profile wall or ceiling installation.
- Remote or Light Switch Control: Allows for simple and convenient operation.
- Quiet Running: Operates at just 32dB(A) @ 3m, ensuring minimal noise disruption.
- Efficient Ventilation: Extracts 24 l/s of air for improved airflow.
- Energy Efficient: Runs at just 16W, reducing energy consumption.
- IP44 Rated: Protected against water splashes, making it safe for bathroom use.
Technical Specifications
- Fan Type: Axial
- Duct Size: 100mm (4")
- Airflow Performance: 24 l/s
- Power Supply: 240V mains voltage
- Power Consumption: 16W
- Noise Level: 32dB(A) @ 3m
- IP Rating: IP44
- Window Fixing Hole Diameter: 105mm
- Wall Fixing Hole Diameter: 117mm
- Dimensions: Width 155mm, Height 155mm, Depth 47mm
✅ Choose the Vent-Axia BAS100B for a simple, energy-efficient, and quiet extraction solution—ideal for bathrooms and WCs.
| C/w Humidistat | N |
| C/w Pullcord | N |
| S4 - Size | 100mm / 4 Inch |
| Product | Domestic Fans |
| Type | Domestic Axial Standard |
| Ingress Protection | IP44 |
| Voltage | 230/240 V |
| C/w Pir | N |
| Air Extraction Rate M3/h | 76 M3/h |
| C/w Timer | N |
| Shape | Square |
| Maximum Sound Power Level | 32 dB |
| Neon Indicator | N |
| Max Litres Per Second Rate | 24 L/S |
| C/w Backdraught Shutter | N |
