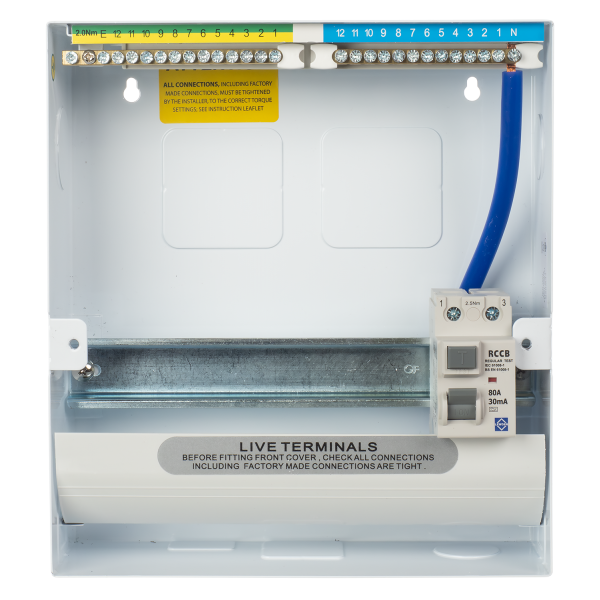

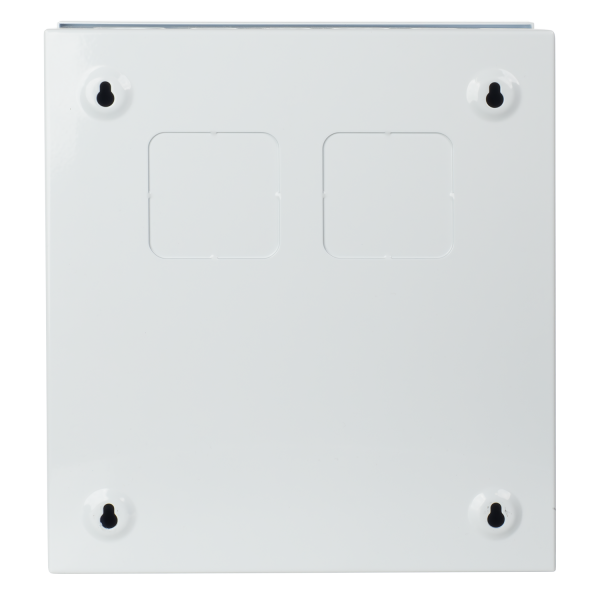

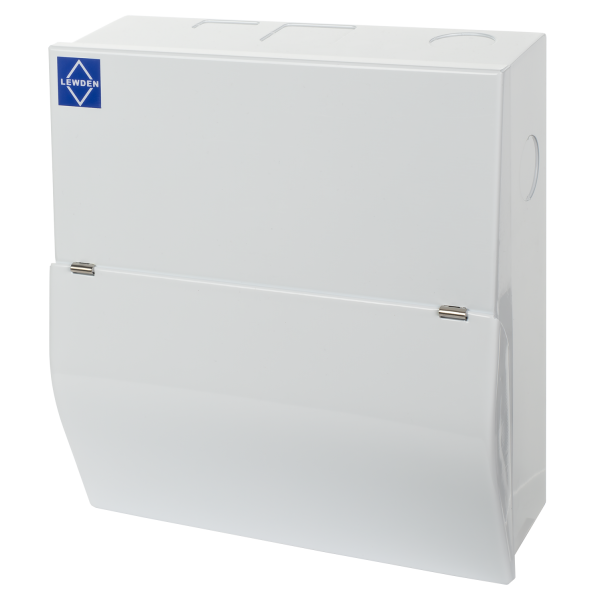

Lewden PRO-MX10R PRO White Amendment Three All Metal 8 Way Consumer Unit With RCD Isolator 63A 30mA
PRO-MX10R
The New Lewden Pro Consumer Unit Range has been designed with the Installer in mind, providing an easy to install consumer unit, meeting the requirements of the latest 18th Edition Wiring Regulations in a stylish, non-obtrusive range of Enclosures. With Square Knockout arrangements
Features
8 useable ways
• Supplied complete with one RCCB.
• One extra module for installation of SPD.
• New & improved range.
• Extra wiring space.
• Selection of knockouts for mini trunking and conduits.
Technical Specification
• Rated current: 80A
• Rated operating voltage: 230V
• Protection degree: IP2XC
• Manufacturing material: Steel
• Frequency: 50Hz
• Phase 1
• Execution: Wall mounting
• Modules: 8+1
• Dimensions: 266x281x106mm (HWD)
| Ean Code | 5026992049228 |
| Range | Lewden PRO |
| Sensitivity | 30 mA |
| Product | Consumer Unit w/ RCD |
| Voltage | 230 V |
| Current Rating | 100A |
| Rcd Sensitivity | 30 mA |
| Body Material | Steel |
| Outgoing Ways | 8 Way |
| Incomer Included | Y |
| Incomer Type | RCD |
| Incomer Current Rating | 63 A |
| Rcd S Included | Y |
