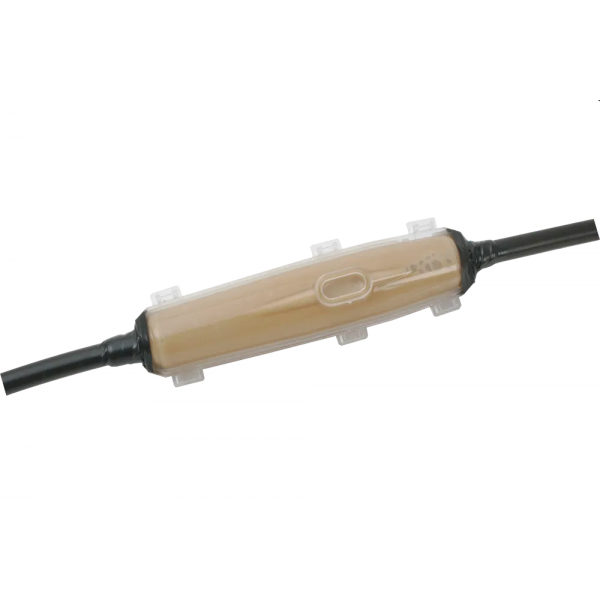

Termination Technology JK70-120 Straight Through Resin Cable Joint Kit 70-120mm² (3/4 core) 25mm - 45mm
JK70-120
70–120mm² (3/4 Core) Straight Resin Joint Kit – Reliable, High-Capacity Jointing Without Connectors
This Straight Resin Joint Kit is designed for secure cable repairs or extensions in high-capacity installations. Supplied with robust moulds and two-part resin for insulation, it provides a straightforward and dependable solution where connectors are sourced separately.
- Heavy-Duty Jointing Kit: Ideal for joining large 3 or 4 core cables in replacement or repair situations.
- Flexible Cable Compatibility: Accepts cable sizes between 70mm² and 120mm², making it suitable for demanding power applications.
- Easy to Assemble: Click-together moulds and fast-curing polyurethane resin simplify the installation process.
- Connector-Free Option: Supplied without connectors, offering flexibility for electricians to use preferred connection types.
- Certified Performance: Tested to BS6910/HD623/VDE0278 standards for safety and reliability across applications.
Technical Specification
- Cable Size Acceptance: 70mm²–120mm² (3/4 Core)
- Cable Diameter Acceptance: 25mm–45mm Ø
- Voltage Rating: 3.6kV
- Connectors Included: Connectors sold separately
- Compatibility: Suitable for stranded/solid, polymeric and paper-insulated copper or aluminium cables
✅ Trust this high-capacity joint kit for flexible and professional-grade cable connections—ideal when using your own choice of connectors!
Product | Cable Joint |
Type | Straight |
Cable Size Range | 25 - 45 mm |
