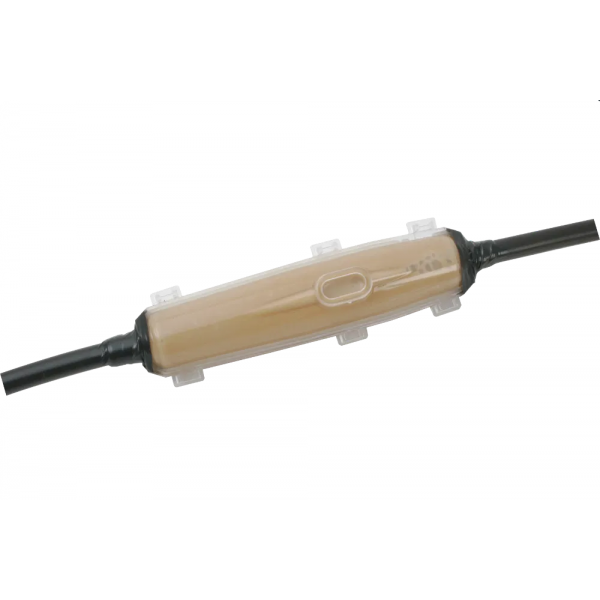

Termination Technology JK150-240 Straight Through Resin Cable Joint Kit 150-240mm² (3/4 core) 45mm - 60mm
JK150-240
150–240mm² (3/4 Core) Straight Resin Joint Kit – Large Capacity, Connector-Free Solution for Secure Cable Repairs
This heavy-duty Straight Resin Joint Kit is engineered for joining large 3 or 4 core cables where repairs or upgrades are required. With robust click-together moulds and high-performance resin, it provides a safe and efficient jointing solution without supplied connectors.
- High-Capacity Jointing: Designed for larger 3 or 4 core cable applications, ideal for industrial and infrastructure use.
- Flexible Installation: Compatible with cables from 150mm² to 240mm² and diameters between 45mm and 60mm.
- Simple Assembly: Includes click-fit moulds and two-part polyurethane resin for a streamlined setup.
- Custom Connector Choice: Supplied without connectors, allowing the use of preferred termination methods.
- Standards-Tested: Complies with BS6910/HD623/VDE0278 to ensure safety and durability.
Technical Specification
- Cable Size Acceptance: 150mm²–240mm² (3/4 Core)
- Cable Diameter Acceptance: 45mm–60mm Ø
- Voltage Rating: 3.6kV
- Connectors Included: Connectors sold separately
- Compatibility: Suitable for stranded/solid, polymeric and paper-insulated copper or aluminium cables
✅ Choose this robust joint kit for a secure, professional-grade connection when working with large-capacity cables and custom connectors!
Product | Cable Joint |
Type | Straight |
Cable Size Range | 45 - 60 mm |
