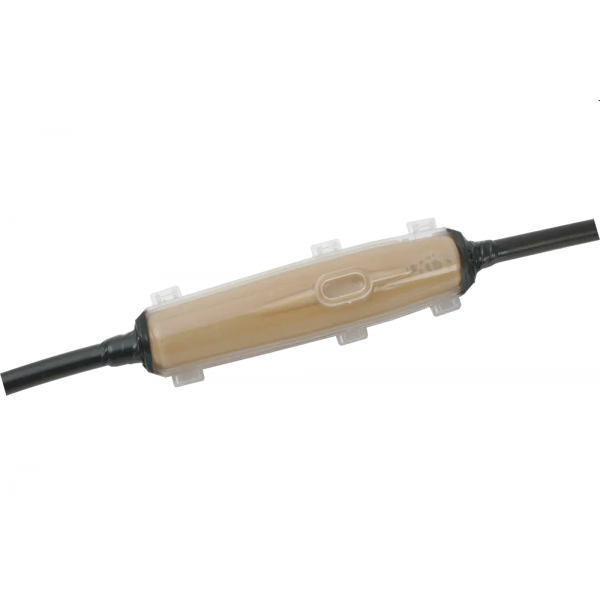

Termination Technology JK25-50 Straight Through Resin Cable Joint Kit With Cable Connectors 25-50mm² (3/4 core) 18mm - 30mm

25–50mm² (3/4 Core) Straight Resin Joint Kit – Complete, Reliable Cable Jointing for Damaged or Extended Runs

This Straight Resin Joint Kit is designed for quick and dependable joining of 3 or 4 core cables where replacements or repairs are necessary. Supplied with pre-filled resin, high-quality moulds, and multiple connectors, it ensures safe, durable joints suitable for underground or exposed environments.

• Complete Cable Jointing Solution: Includes click-together moulds and two-part polyurethane resin for efficient on-site installation.
• Multi-Core Compatibility: Suitable for 3 or 4 core cable applications, ideal for various low-voltage cable types.
• Wide Cable Range: Accepts cable sizes from 25mm² to 50mm² and diameters between 18mm and 30mm.
• Versatile Connector Set: Includes 4 each of BS25, BS35, and BS50 connectors to cover common cable sizes.
• Standards-Compliant: Tested to BS6910/HD623/VDE0278, ensuring performance and safety compliance.

Technical Specification

• Cable Size Acceptance: 25mm²–50mm² (3/4 Core)
• Cable Diameter Acceptance: 18mm–30mm Ø
• Voltage Rating: 3.6kV
• Connectors Included: 4x BS25, 4x BS35, 4x BS50
• Compatibility: Suitable for stranded/solid, polymeric and paper-insulated copper or aluminium cables

✅ Choose this all-in-one resin joint kit for fast, compliant, and secure cable connections in demanding environments!
