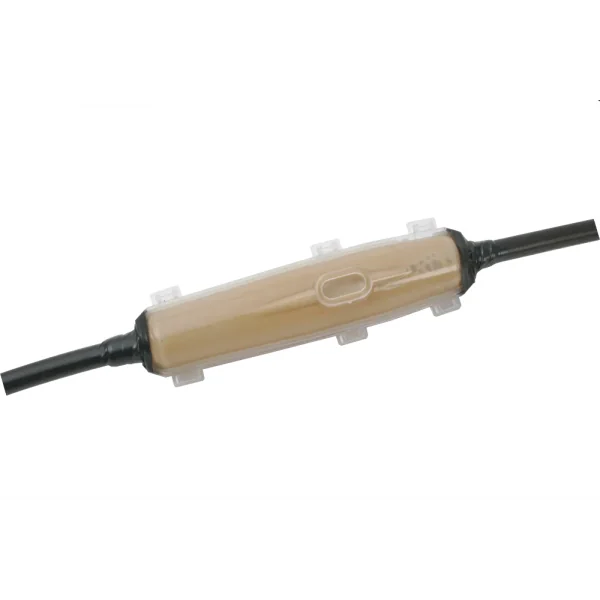

Termination Technology JK10-25 Straight Through Resin Cable Joint Kit With Cable Connectors 10-25mm² (3/4 core) 13mm - 25mm

10–25mm² Resin Cable Joint Kit (3/4 Core) – Complete Straight Joint with Connectors for Mid-Range Cable Repairs

The 10–25mm² straight resin joint kit provides a dependable and efficient solution for repairing or joining medium-sized cables. Supplied with click-together moulds and a two-part polyurethane resin, this kit ensures a secure, weather-resistant seal with minimal installation effort. It’s ideal for use on both polymeric and paper-insulated cables in domestic, commercial, and industrial environments.

• Quick and Easy Installation: Click-together moulds and pre-measured two-part resin simplify the jointing process and ensure a clean, professional finish.
• Wide Cable Compatibility: Accepts cable sizes from 10mm² to 25mm² (3 or 4 core) with outer diameters from 13mm to 25mm.
• Reliable Voltage Performance: Rated up to 3.6kV for low-voltage applications requiring strong mechanical and environmental protection.
• Full Connector Set Included: Comes with 4x BS10, 4x BS16, and 4x BS25 connectors—suitable for copper or aluminium, solid or stranded conductors.
• Versatile Cable Support: Compatible with single and multi-core, polymeric and paper-insulated cable types.

Technical Specification

• Cable Size Acceptance: 10mm² – 25mm² (3/4 Core)
• Cable Diameter Range: 13mm – 25mm Ø
• Voltage Rating: 3.6kV
• Connectors Included: 4x BS10, 4x BS16, 4x BS25
• Standards: Tested to BS6910 / HD623 / VDE0278

✅ Choose this complete resin joint kit for secure, mid-range cable repairs with fast, professional installation!
