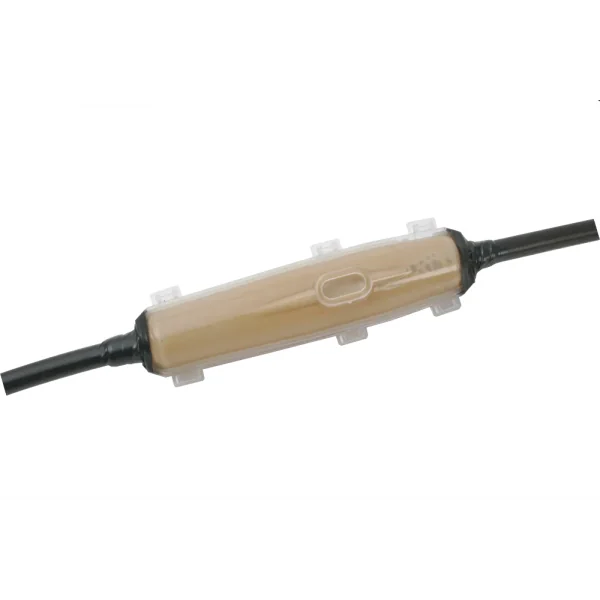

Termination Technology JK1.5-10 Straight Through Resin Cable Joint Kit With Cable Connectors 1.5-10mm² (3/4 core) 8mm - 20mm

1.5–10mm² Resin Cable Joint Kit (3/4 Core) – Complete Straight Joint with Connectors for Reliable Cable Repairs

This 1.5–10mm² straight resin joint kit provides a reliable solution for joining or repairing damaged cables. Supplied with click-together moulds and a two-part polyurethane resin, it ensures a secure, weatherproof seal. The kit includes a full set of connectors and is suitable for a wide range of low-voltage cable types, making it ideal for professional use in both industrial and domestic environments.

• Easy Installation: Click-together moulds and two-part resin simplify the jointing process and reduce installation time.
• Wide Cable Compatibility: Accepts cable sizes from 1.5mm² to 10mm² cross-section (3 or 4 core) with diameters between 8mm and 20mm.
• High Voltage Rating: Rated up to 3.6kV for low-voltage applications requiring robust insulation and sealing.
• Complete Connector Set: Includes 4x BSL15, 4x BSL25, 4x BSL6, and 4x BS10 connectors for copper or aluminium conductors.
• Versatile Cable Type Support: Suitable for stranded or solid, polymeric and paper-insulated cables in both single and multi-core configurations.

Technical Specification

• Cable Size Acceptance: 1.5mm² – 10mm² (3/4 Core)
• Cable Diameter Range: 8mm – 20mm Ø
• Voltage Rating: 3.6kV
• Connectors Included: 4x BSL15, 4x BSL25, 4x BSL6, 4x BS10
• Standards: Tested to BS6910 / HD623 / VDE0278

✅ Use this complete resin joint kit for secure, professional-grade cable repairs with confidence and ease!
